Product

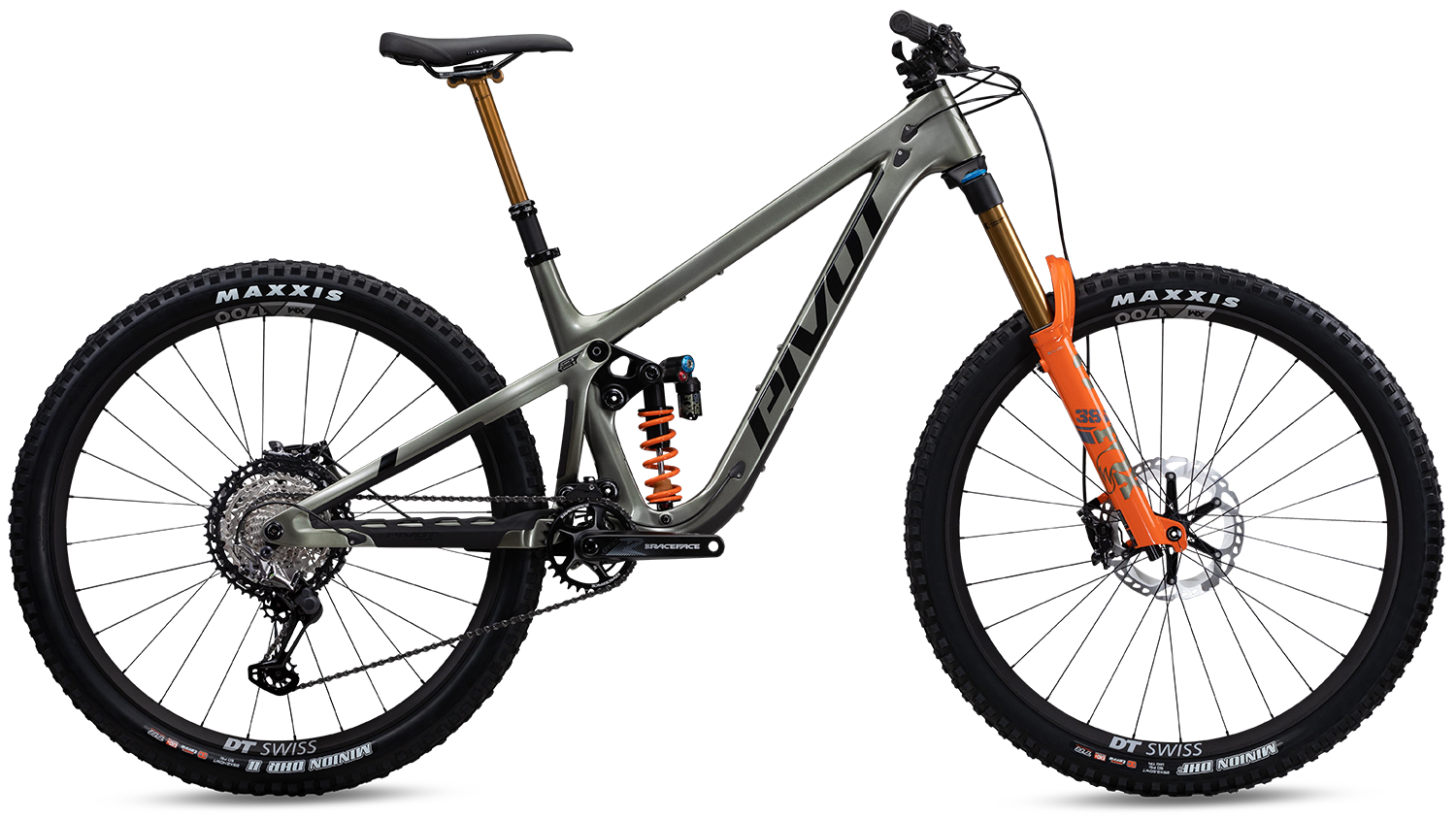

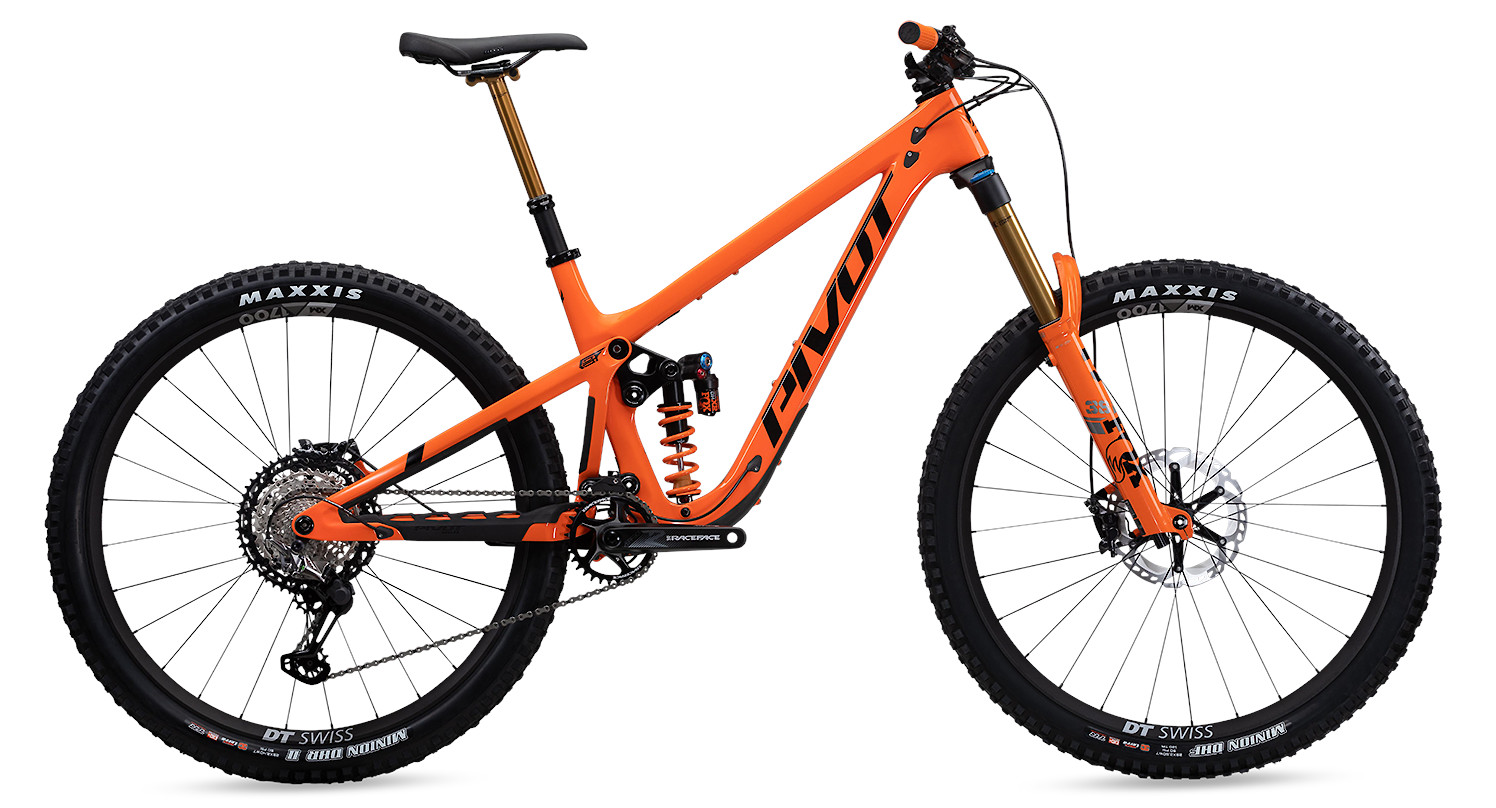

Pivot Firebird Pro XT/XTR Coil with Alloy Wheels
Model Year
2021
Riding Type
Enduro / All-Mountain
Freeride / Bike Park
Rider
Unisex
Sizes and Geometry
S (Low, High)
M (Low, High)
L (Low, High)
XL (Low, High)
Wheel Size
29″
Frame Material
Carbon Fiber
Frame Material Details

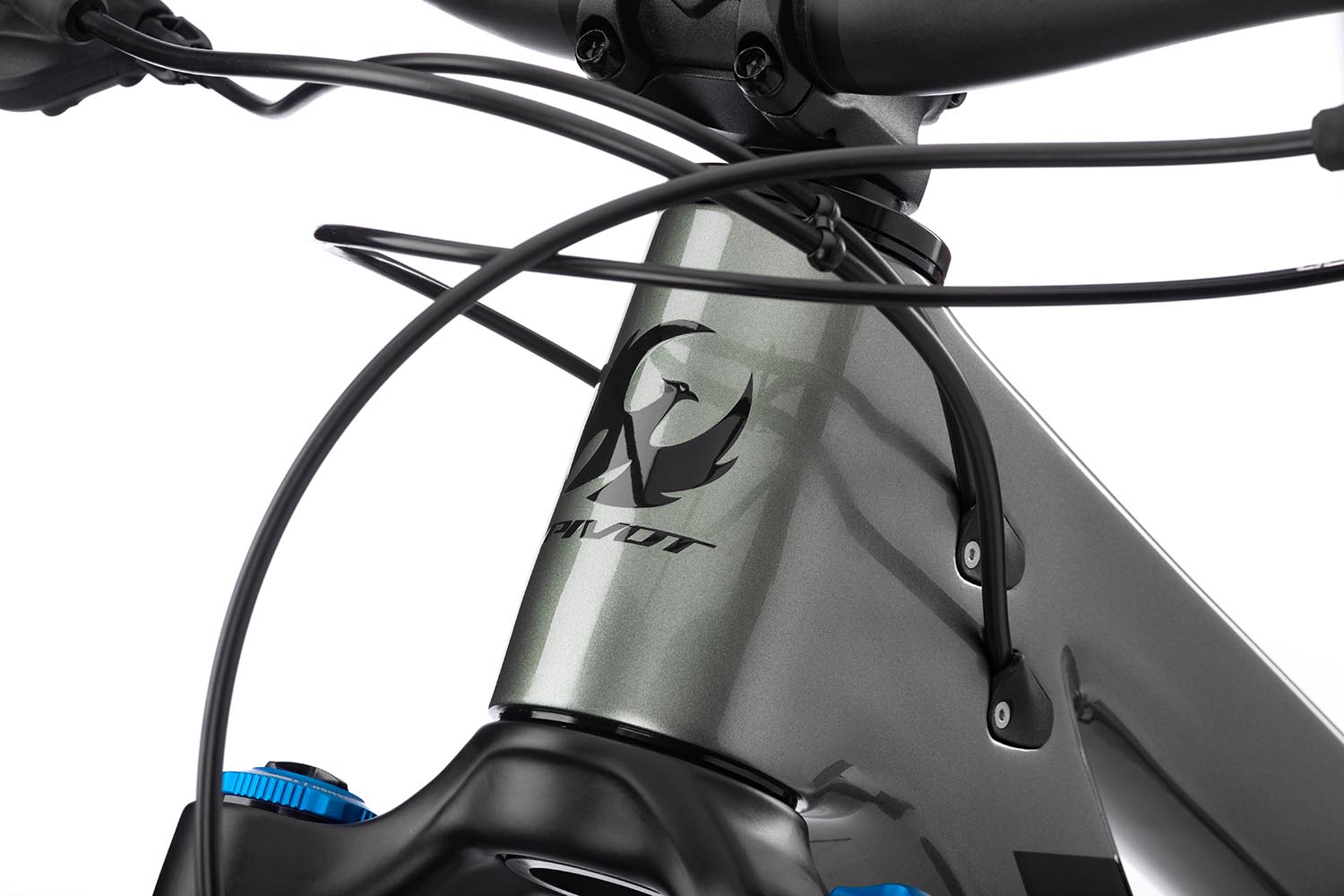

Hollow Core carbon construction with size-specific ride tuning, integrated rubber frame guards, and full-length internal cable routing
Rear Travel
165mm

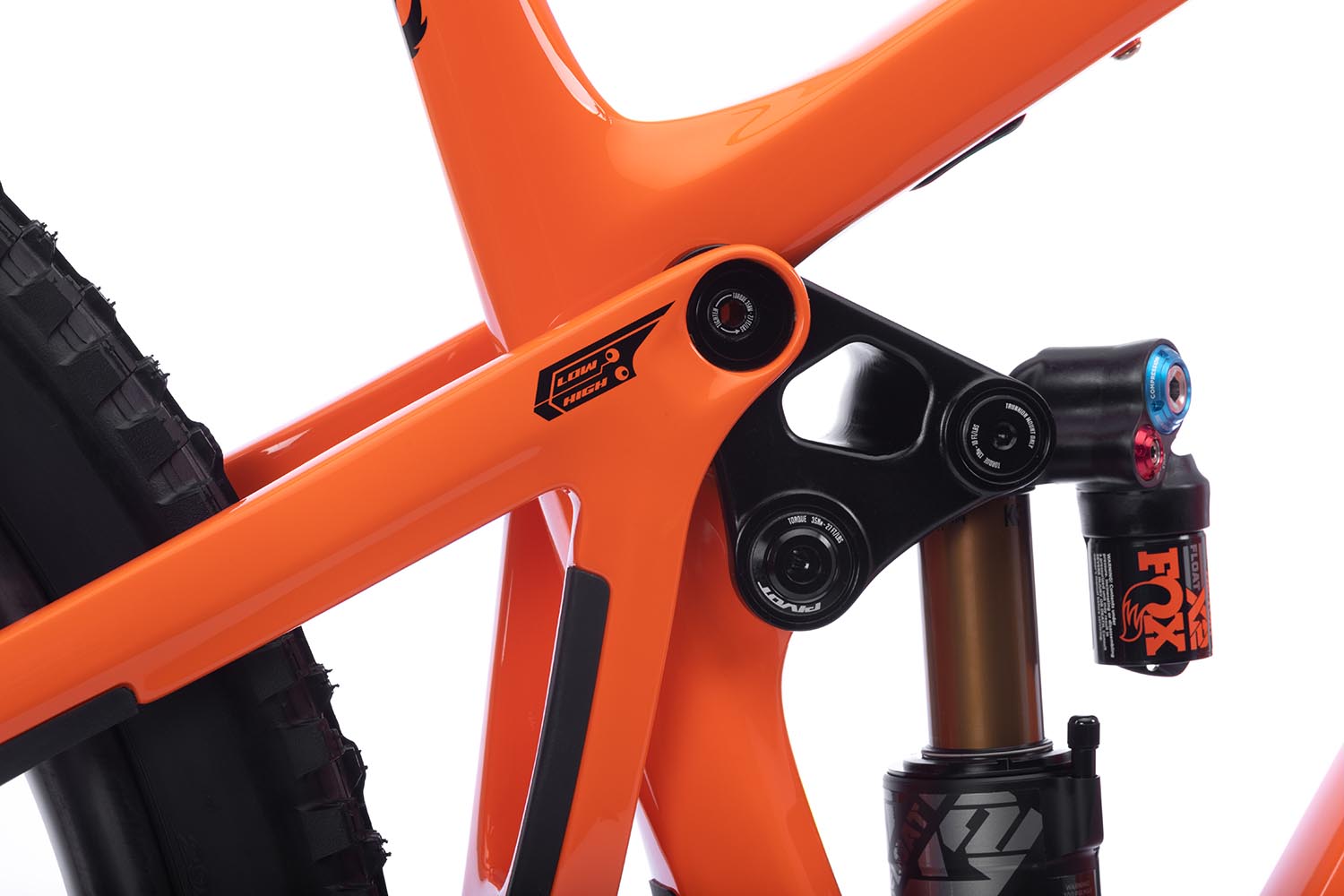

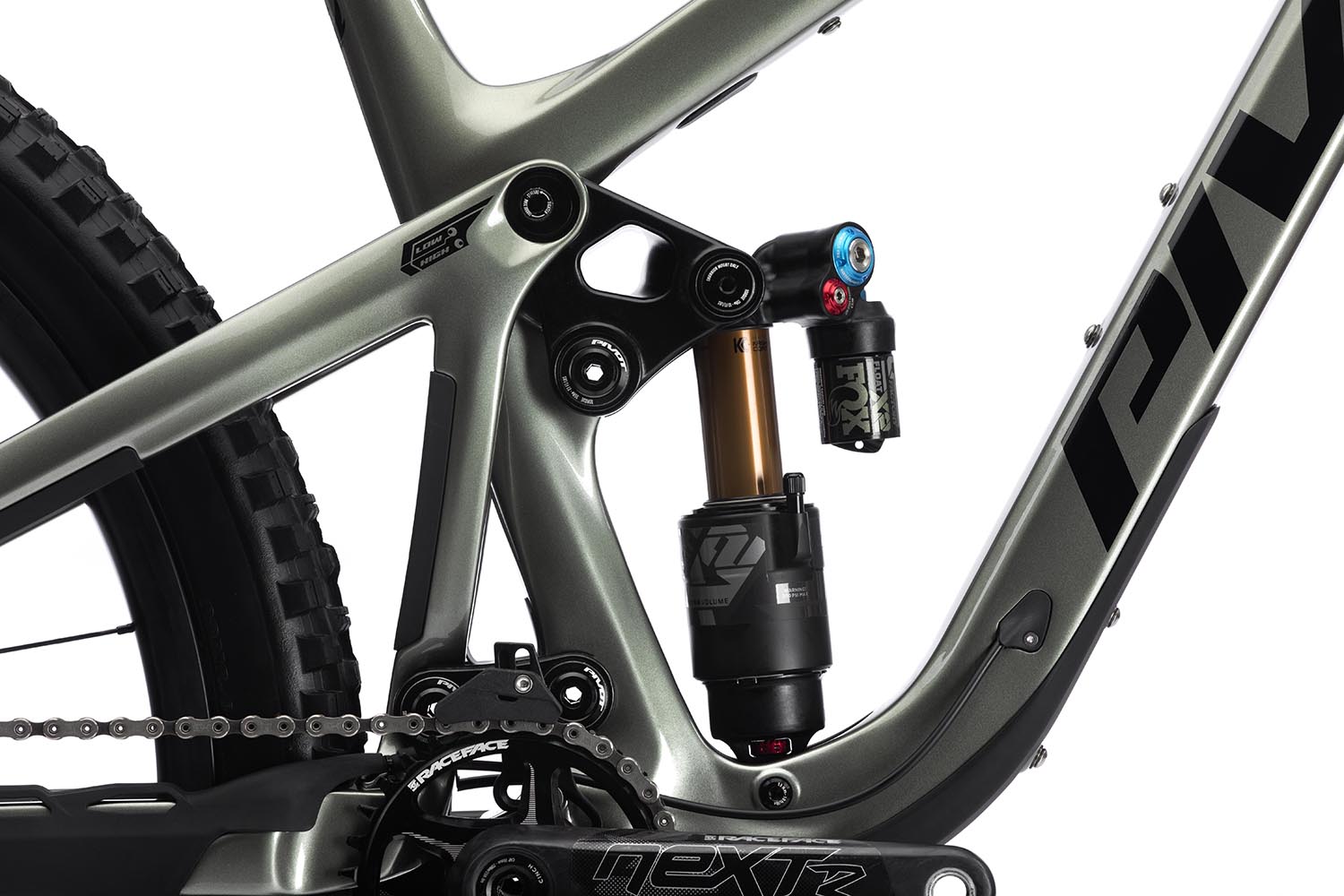

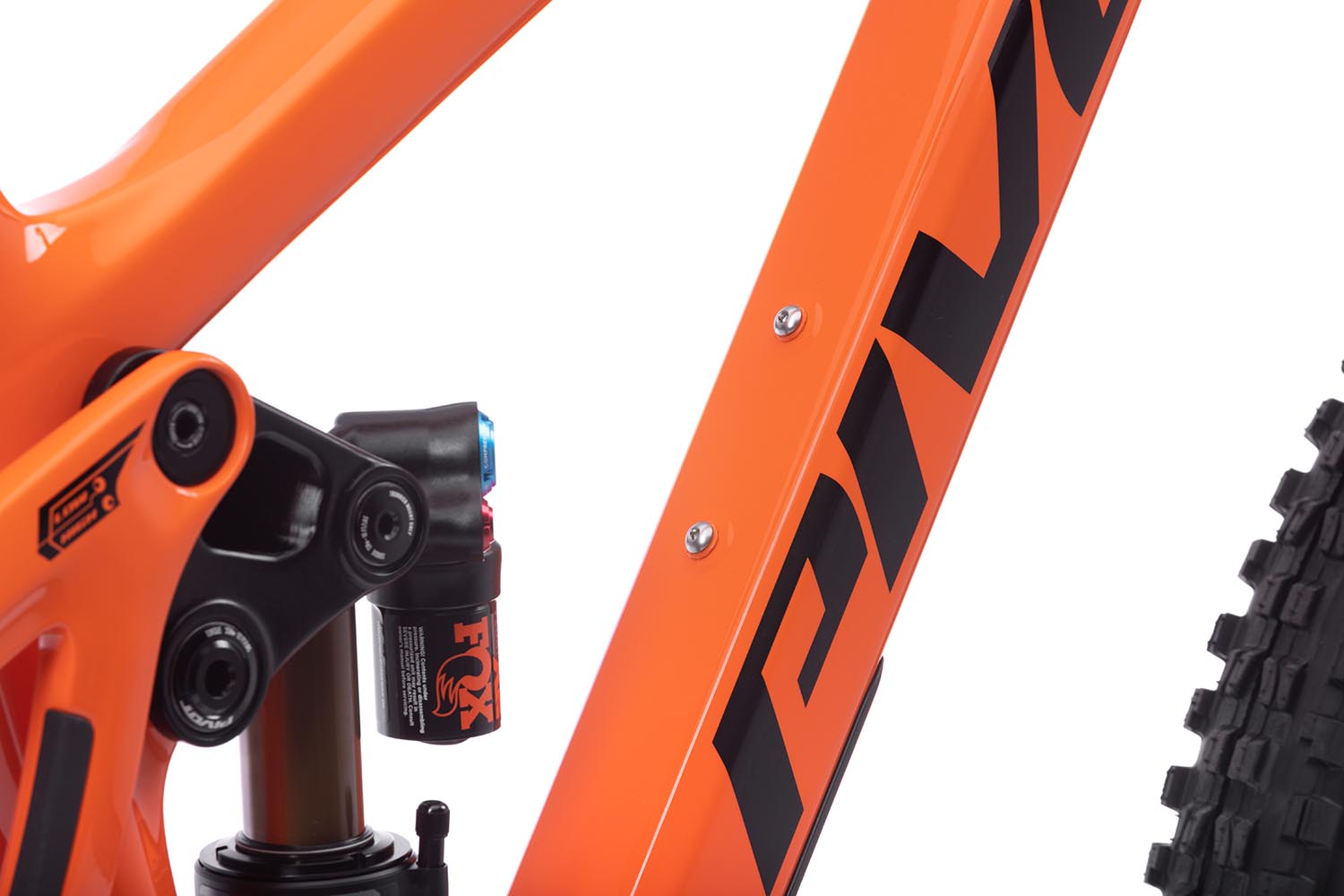

Rear Shock
FOX Factory DHX2, 205mm x 65mm metric, trunnion upper mount, spring rates: 400 lb. (S), 450 lb. (M), 500 lb. (L), 550 lb. (XL)
Fork
FOX Factory 38 GRIP2 29″, 44mm offset
Fork Travel
170mm
Head Tube Diameter
Tapered

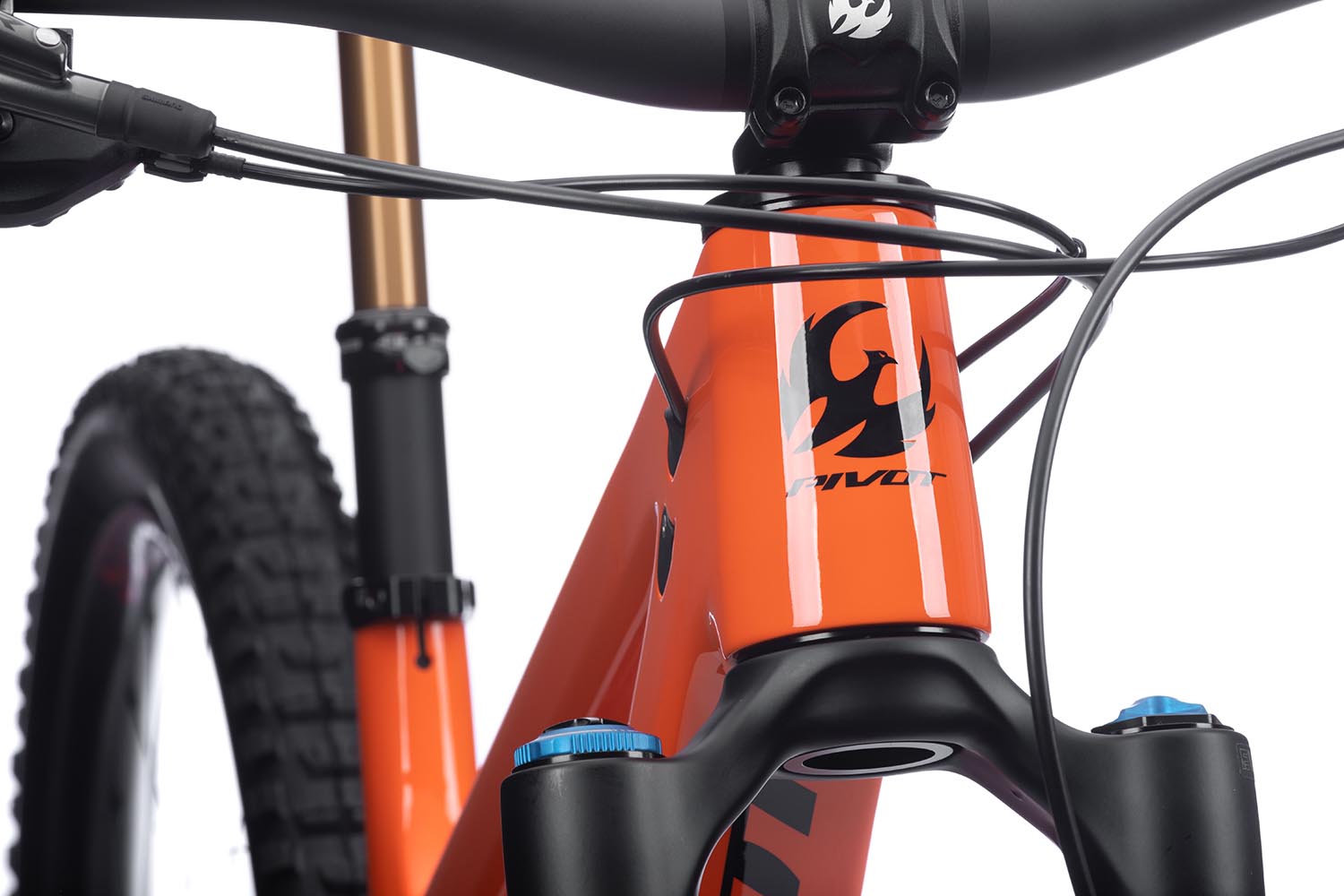

Headset
Pivot Precision Sealed Cartridge, ZS (zero stack) 49.6mm top, (zero stack) 56mm bottom

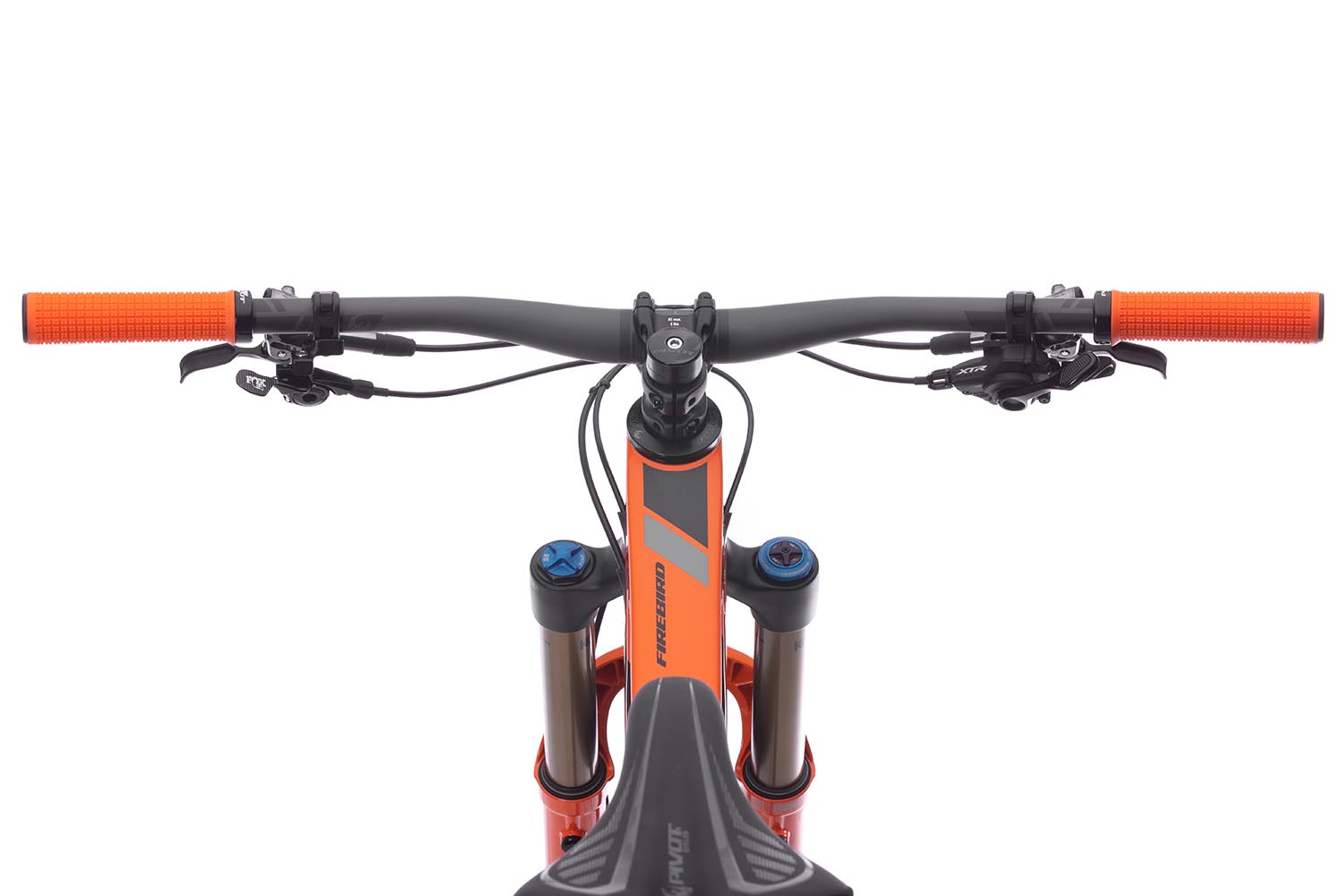

Stem
Phoenix Team Enduro/Trail
Grips
Phoenix Factory Lock-On
Brakes
Shimano XT M8120, 4-piston, with 203mm Shimano XT CenterLock rotors
Brake Levers
Shimano XT M8120
Drivetrain
1x
Shifters
Shimano XT M8100 I-SPEC EV, 12-speed
Front Derailleur
N/A
Rear Derailleur
Shimano XTR M9100 SGS, 12-speed
ISCG Tabs
ISCG05
Chainguide
Top guide

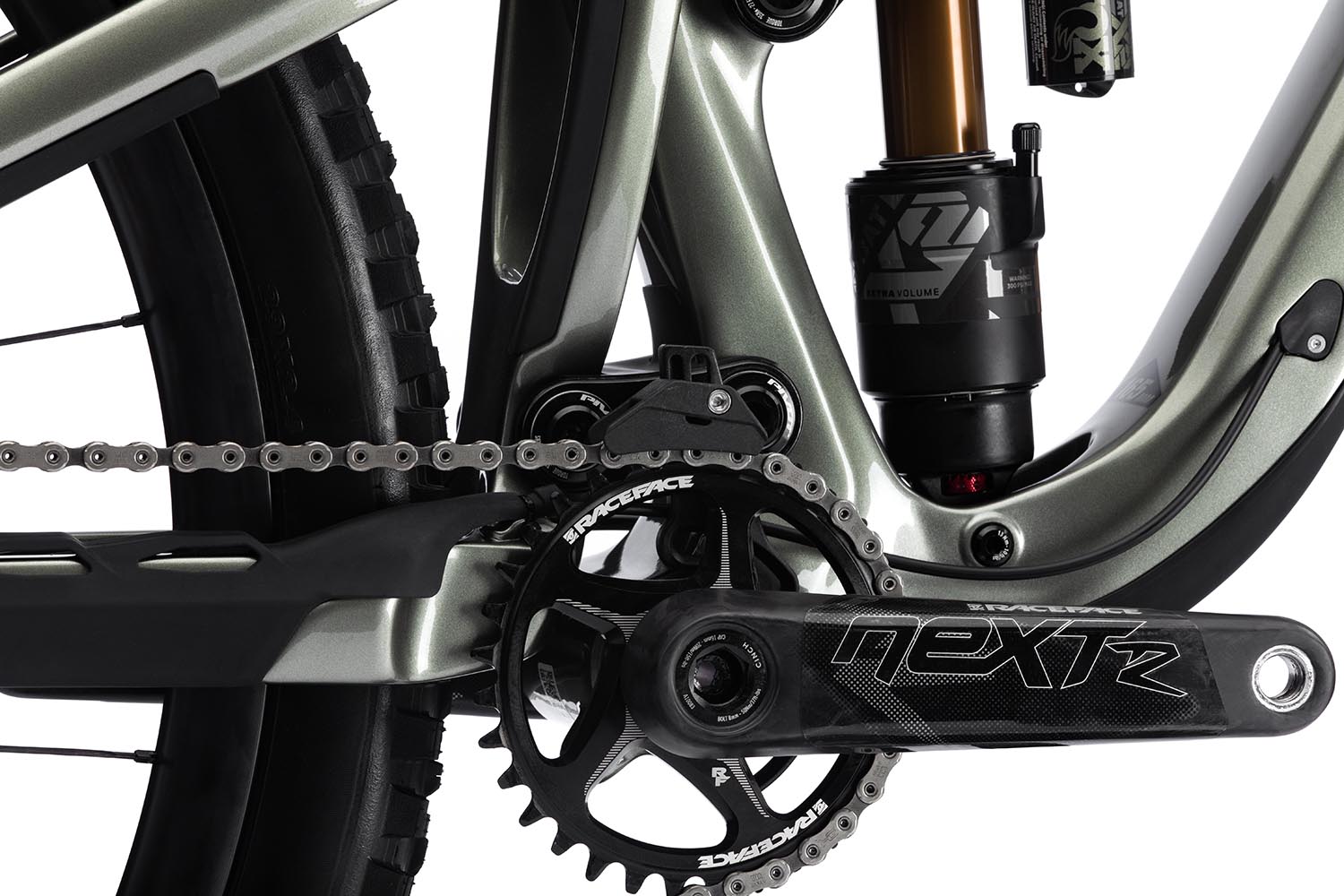

Cranks
Race Face Aeffect R
Chainrings
32 tooth
Bottom Bracket
Press-fit BB92
Pedals
N/A
Chain
Shimano CN-M8100, 12-speed
Cassette
Shimano XT M8100, 10-51 tooth
Rims
DT Swiss XM1700 wheels, 30mm, 29″
Upgrade option: Industry Nine Enduro S wheels, 30.5mm, 29″
Upgrade option: Industry Nine Enduro S wheels, 30.5mm, 29″
Hubs
DT Swiss 350 with 36-tooth Star Ratchet, 15x110mm front/12x157mm rear
Upgrade option: Industry Nine Enduro S wheels with Industry Nine 1/1 hub
Upgrade option: Industry Nine Enduro S wheels with Industry Nine 1/1 hub
Spokes
DT Swiss XM1700 wheels
Upgrade option: Industry Nine Enduro S wheels
Upgrade option: Industry Nine Enduro S wheels

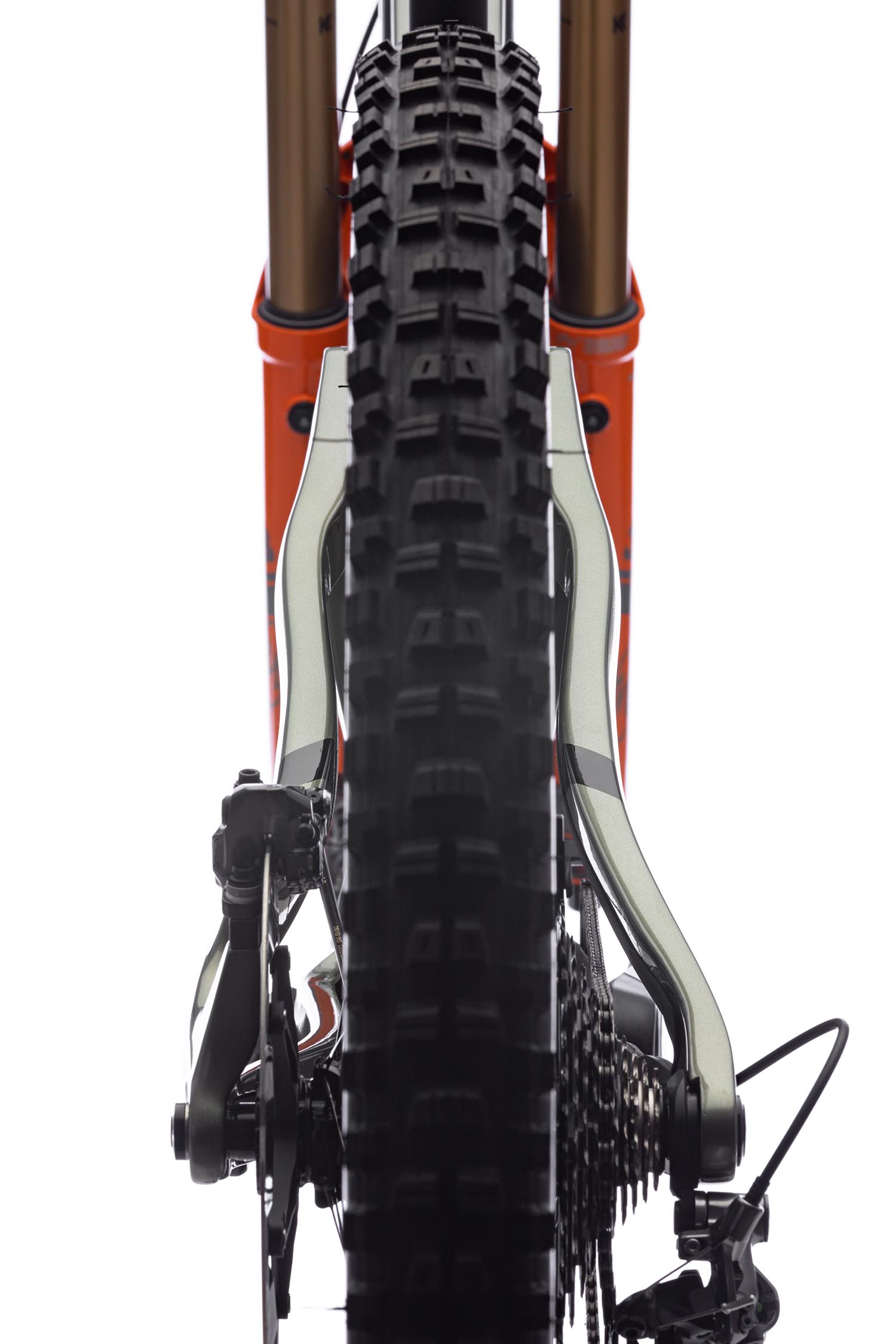

Tires
Front: Maxxis Minion DHF 29″ x 2.5″ WT/TR/3C/EXO+, MaxxTerra
Rear: Maxxis Minion DHRII 29″ x 2.4″ WT/TR/3C/EXO+, MaxxTerra
Rear: Maxxis Minion DHRII 29″ x 2.4″ WT/TR/3C/EXO+, MaxxTerra
Saddle
Phoenix WTB Volt Pro (medium width)
Seatpost
FOX Transfer Factory Series dropper, travel: 150mm (S), 175mm (M-L), 200mm (XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Stanard single bolt
Rear Dropout / Hub Dimensions
12mm x 157mm Super Boost Plus (SB+)
Max. Tire Size
27.5″x2.8″ and 29″x2.6″

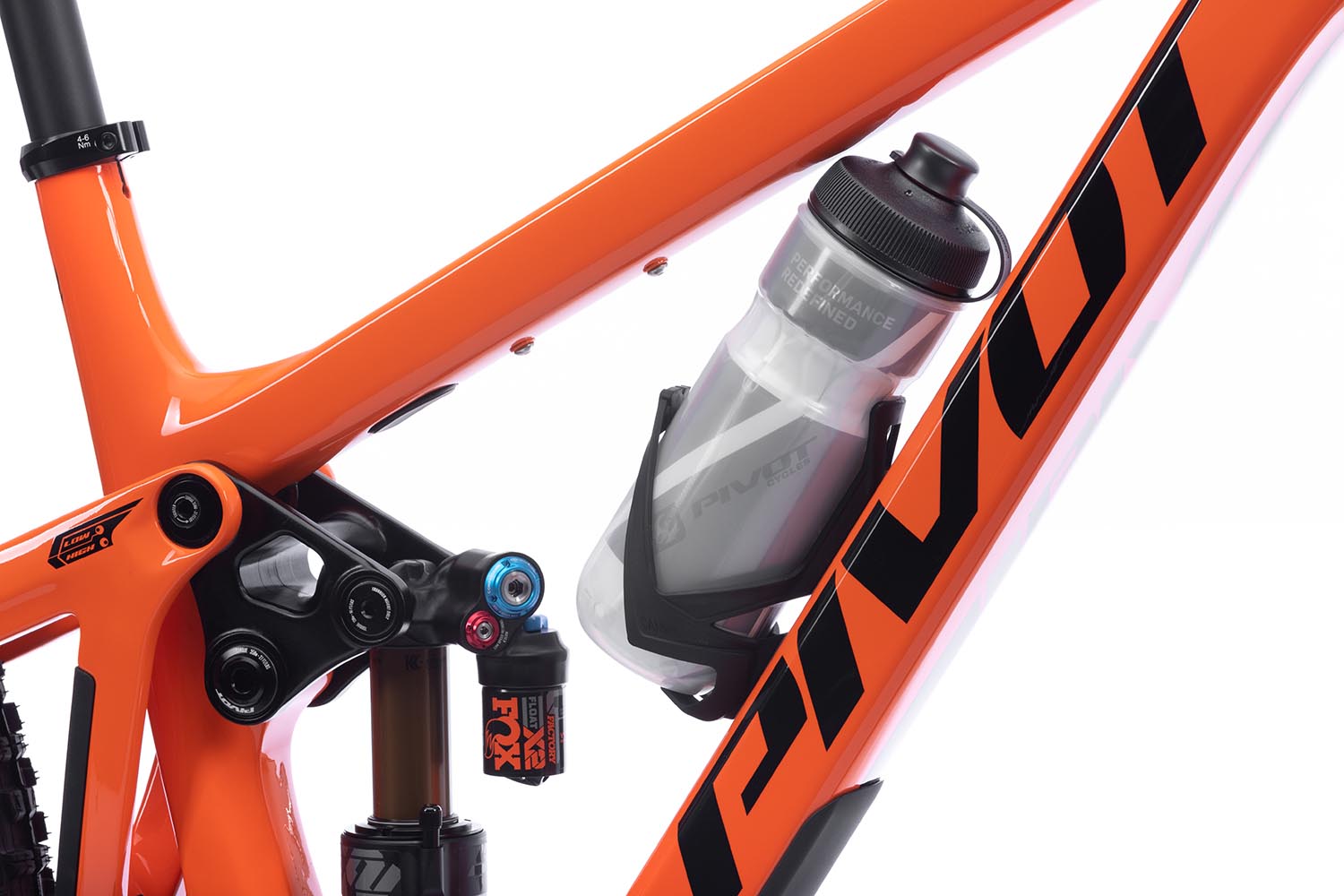

Bottle Cage Mounts
Yes, one inside front triangle (on all sizes) plus one underneath down tube
Colors
Orange or Glacial Green Metallic
Warranty
10 years for carbon frame
1 year for frame paint, finish, and bearings
5 years for Pivot Cycles-branded Phoenix Components
1 year for frame paint, finish, and bearings
5 years for Pivot Cycles-branded Phoenix Components
