Product

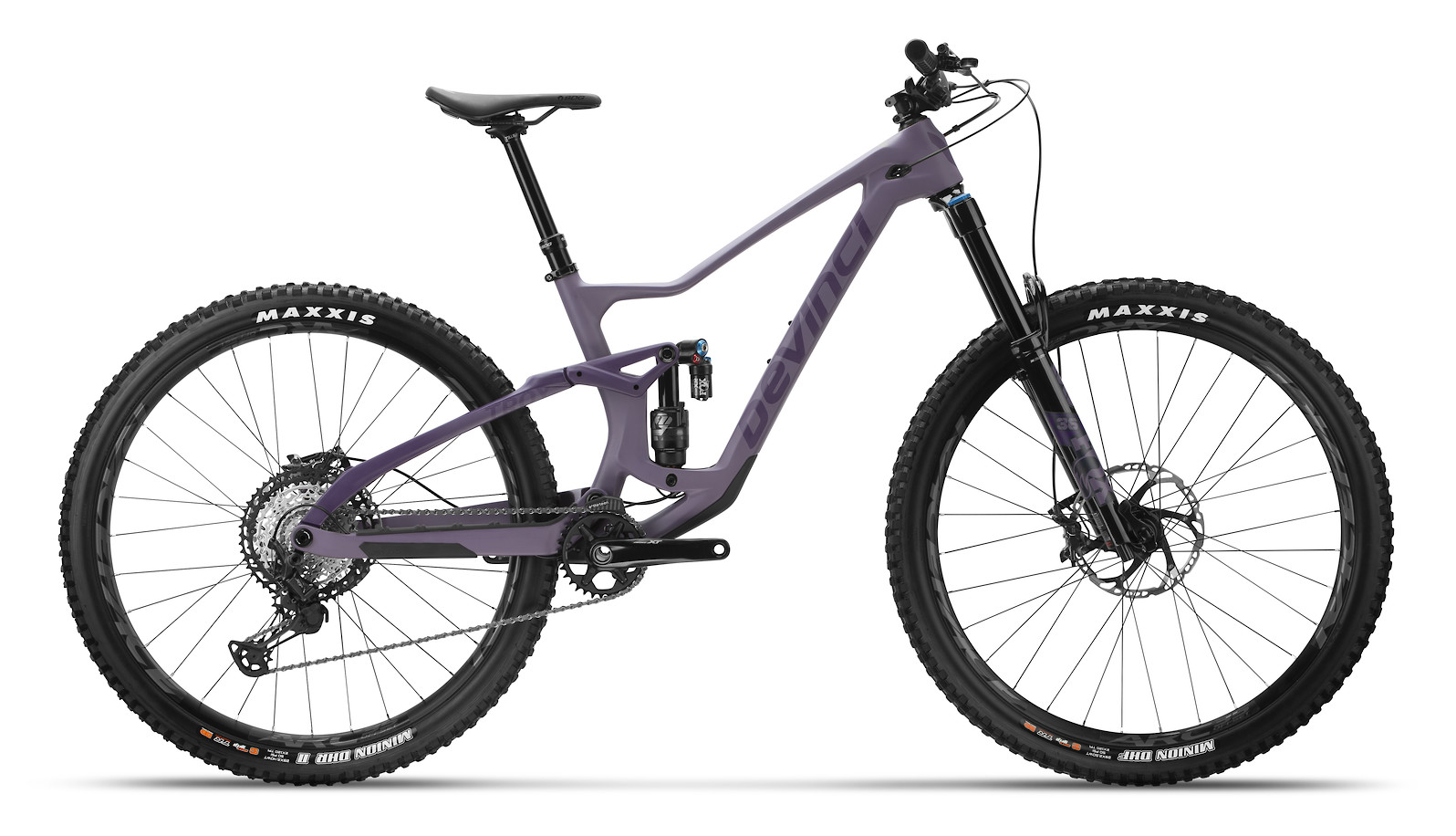

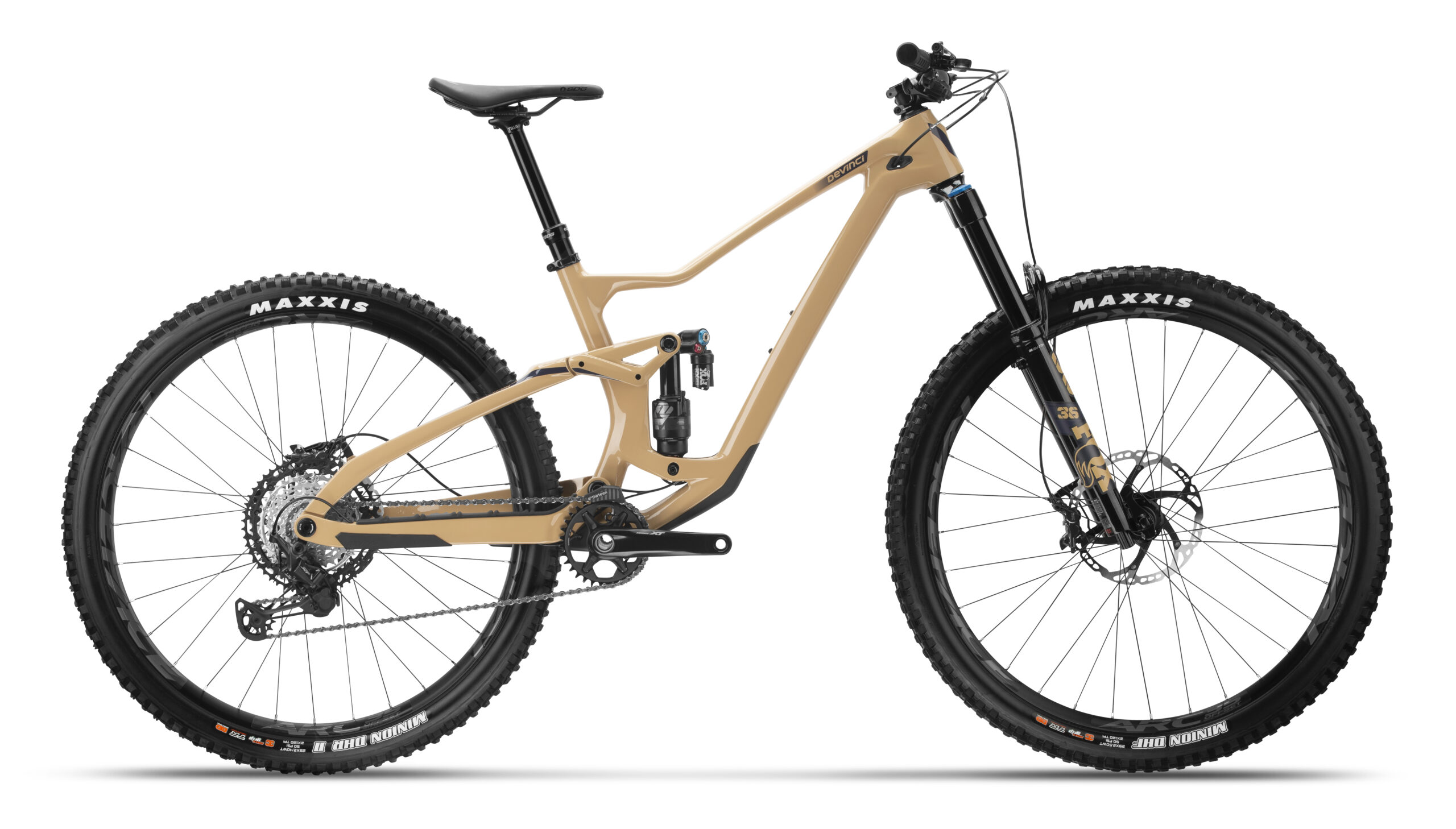

Devinci Troy Carbon XT LTD Bike
Model Year
2021
Riding Type
Trail
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
S (Lo, Hi)
M (Lo, Hi)
L (Lo, Hi)
XL (Lo, Hi)
Wheel Size
29″
Frame Material
Carbon Fiber
Frame Material Details
Full cabon DMC-G with hidden pivots, internal routing, and integrated frame guards
Rear Travel
140mm
Rear Shock
FOX FLOAT X2 Performance Elite, trunnion, 185×52.5mm, 0.3 volume spacer
Fork
FOX FLOAT 36 Performance Elite, GRIP2, 44mm offset
Fork Travel
160mm
Head Tube Diameter
Tapered
Headset
FSA Orbit 1.5 Zero Stack
Stem
Race Face Turbine R 35, 50mm length, 0° rise
Grips
Devinci Performance, lock-on
Brakes
Shimano XT M8120/M8100, 4-piston, with Shimano RT76 203mm rotors
Brake Levers
Shimano XT M8120/M8100
Drivetrain
1x
Shifters
Shimano XT M8100, I-SPEC EV, 12-speed
Front Derailleur
NA
Rear Derailleur
Shimano XT M8100, 12-speed
ISCG Tabs
2-bolt ISCG 05
Chainguide
e*thirteen TRS Race SL Carbon
Cranks
Shimano XT M8130-1, Super Boost
Chainrings
32 tooth
Bottom Bracket
Shimano MT800, BSA 68/73mm threaded
Pedals
N/A
Chain
Shimano M7100, 12-speed
Cassette
Shimano M8100, 12-speed, 10-51 tooth
Rims
Race Face ARC 35, 29″, 35mm inner width, tubeless ready
Hubs
Front: Race Face Vault, 6-bolt, TA 15mm x 110mm
Rear: Race Face Vault, 6-bolt, TA 12mm x 157mm Super Boost, Micro Spline driver
Rear: Race Face Vault, 6-bolt, TA 12mm x 157mm Super Boost, Micro Spline driver
Spokes
Sapim Stainless 14G with Nylok
Tires
Front: Maxxis Minion DHF, 29″x2.5″ WT/3C/MaxxGrip/DoubleDown/TR
Rear: Maxxis Minion DHR II, 29″x2.4″ WT/3C/MaxxGrip/DoubleDown/TR
Rear: Maxxis Minion DHR II, 29″x2.4″ WT/3C/MaxxGrip/DoubleDown/TR
Saddle
SDG Belair 3.0
Seatpost
SDG Tellis with SDG Tellis I-SPEC EV 1x lever
Seatpost Diameter
34.9mm
Seatpost Clamp
Alloy CNC single-bolt, 39.3mm
Rear Dropout / Hub Dimensions
157mm x 12mm (Super Boost)
Max. Tire Size
29″x2.6″
Bottle Cage Mounts
Yes (fits a standard 500mL bottle with a piggyback shock)
Colors
Gloss Full Sand
Matte Purple Ghost
Matte Purple Ghost
Warranty
Lifetime frame
Weight
32 lb 13.9 oz (14,910 g)
