Product

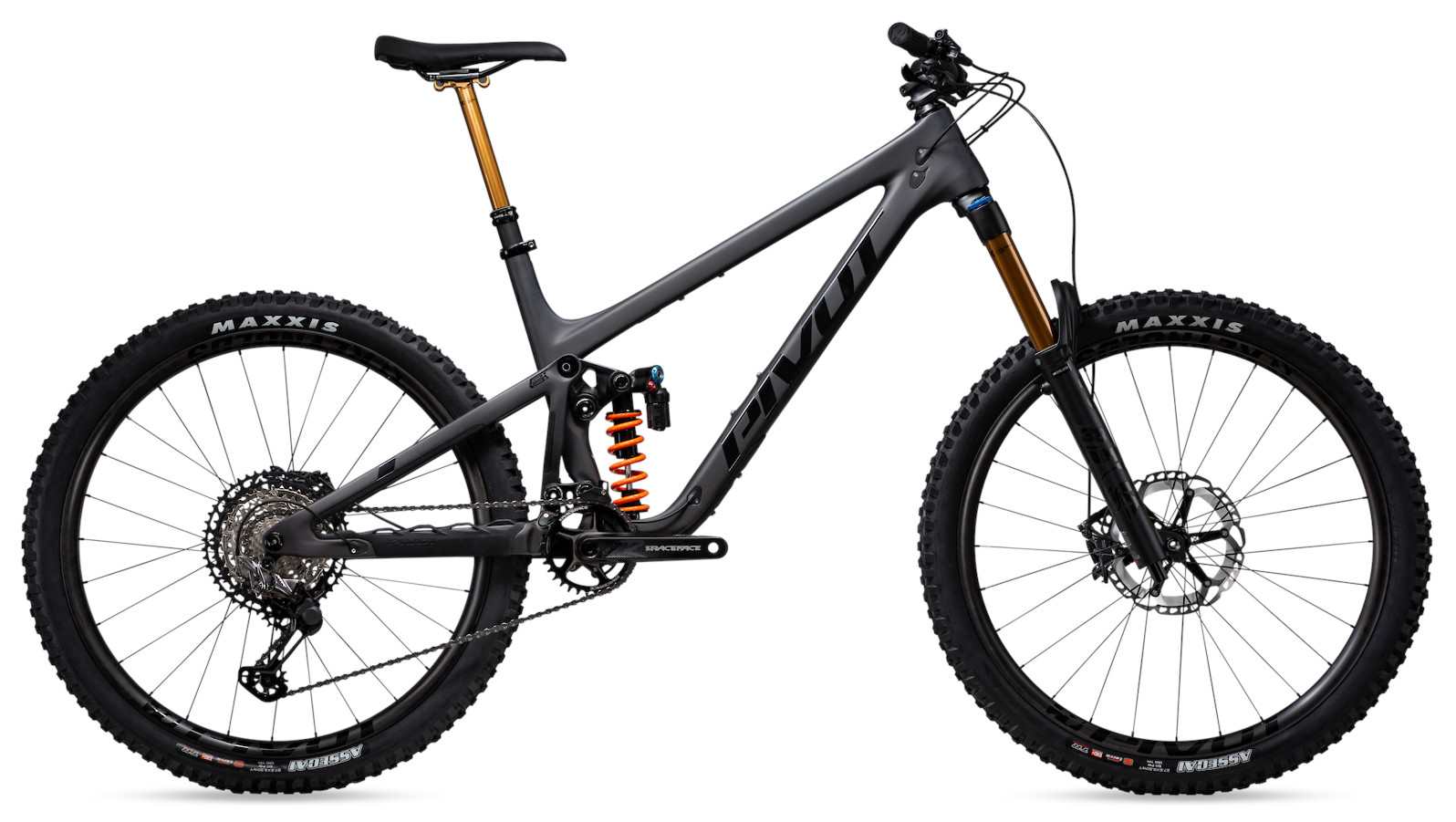

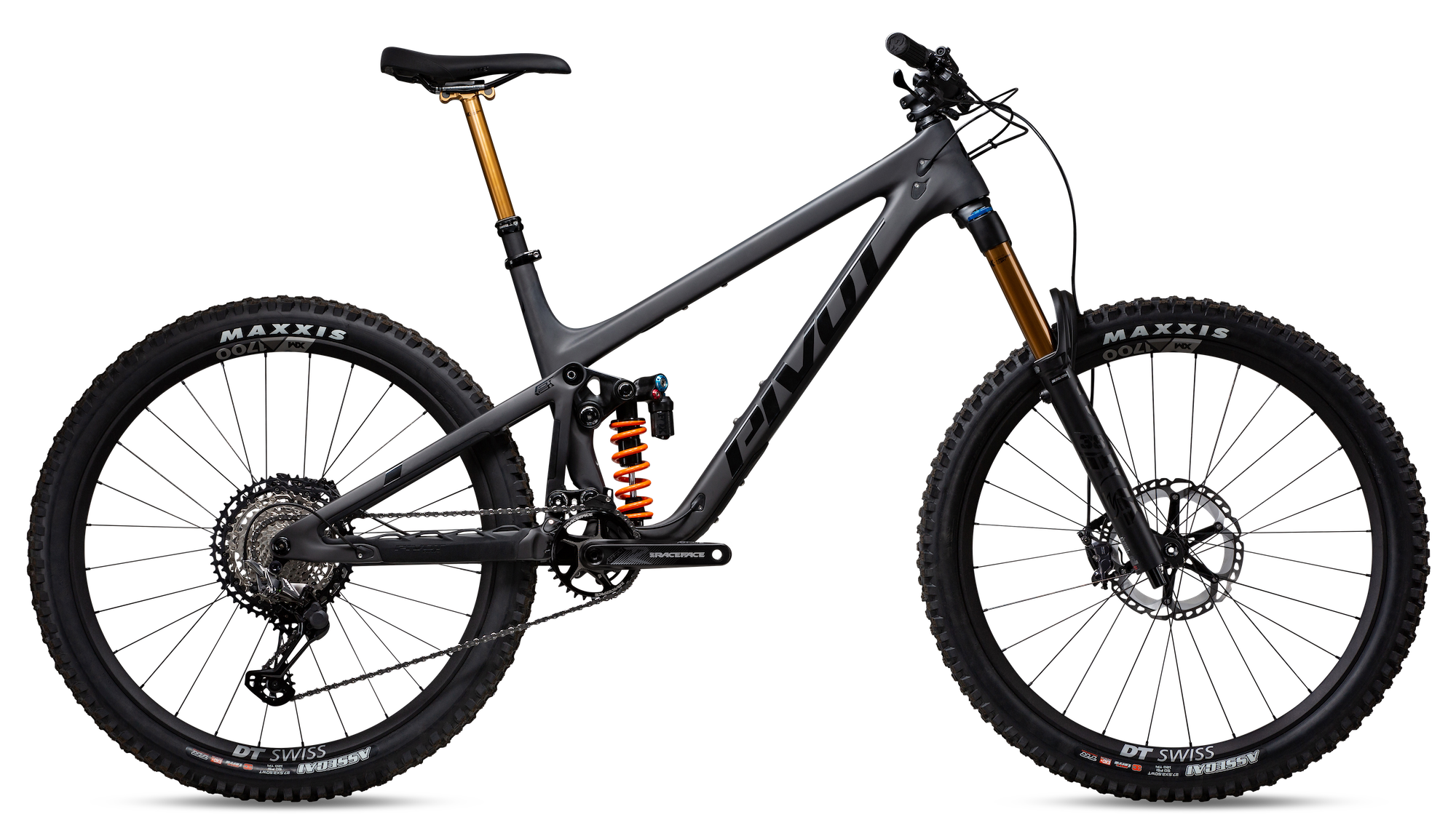

Pivot Mach 6 Pro XT/XTR Coil
Model Year
2021
Riding Type
Enduro / All-Mountain
Rider
Unisex

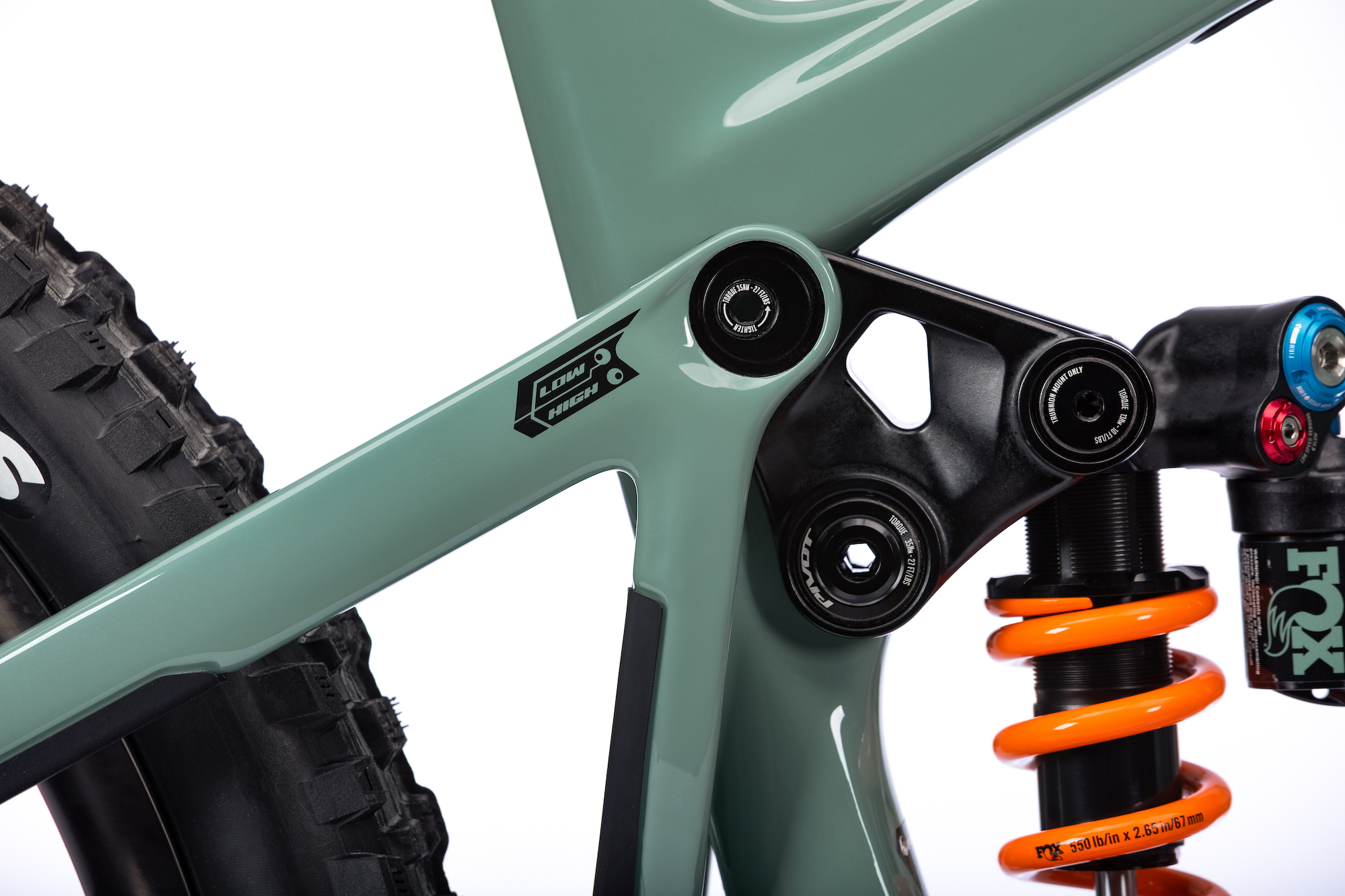

Sizes and Geometry
XS (Low, High)
S (Low, High)
M (Low, High)
L (Low, High)
Wheel Size
27.5″ (650b)
Frame Material
Carbon Fiber
Frame Material Details

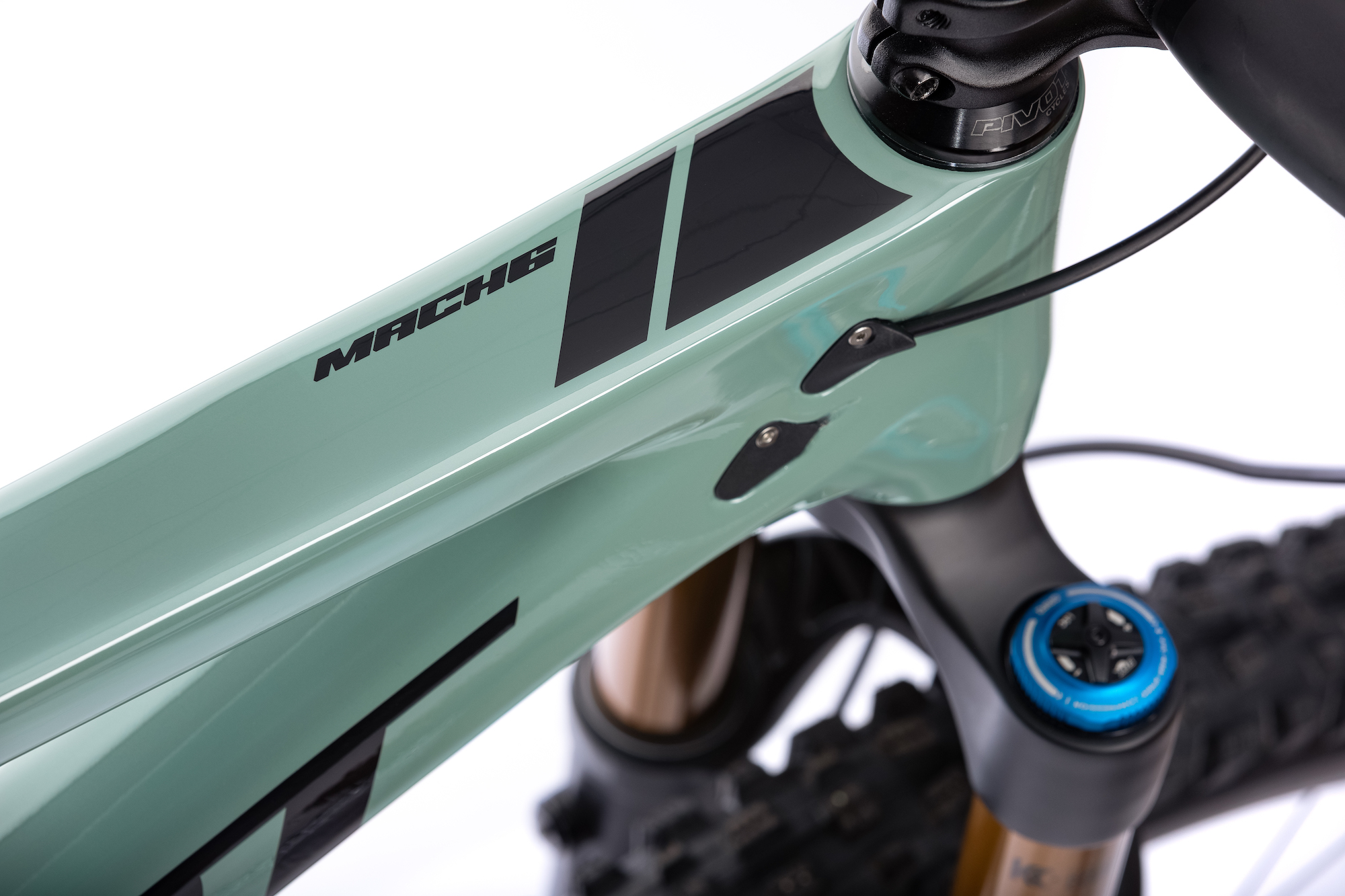

Full Hollow Core carbon fiber frame with size-specific ride tuning, integrated rubber frame guards, and full-length internal cable routing with Pivot’s Cable Port System
Rear Travel
158mm

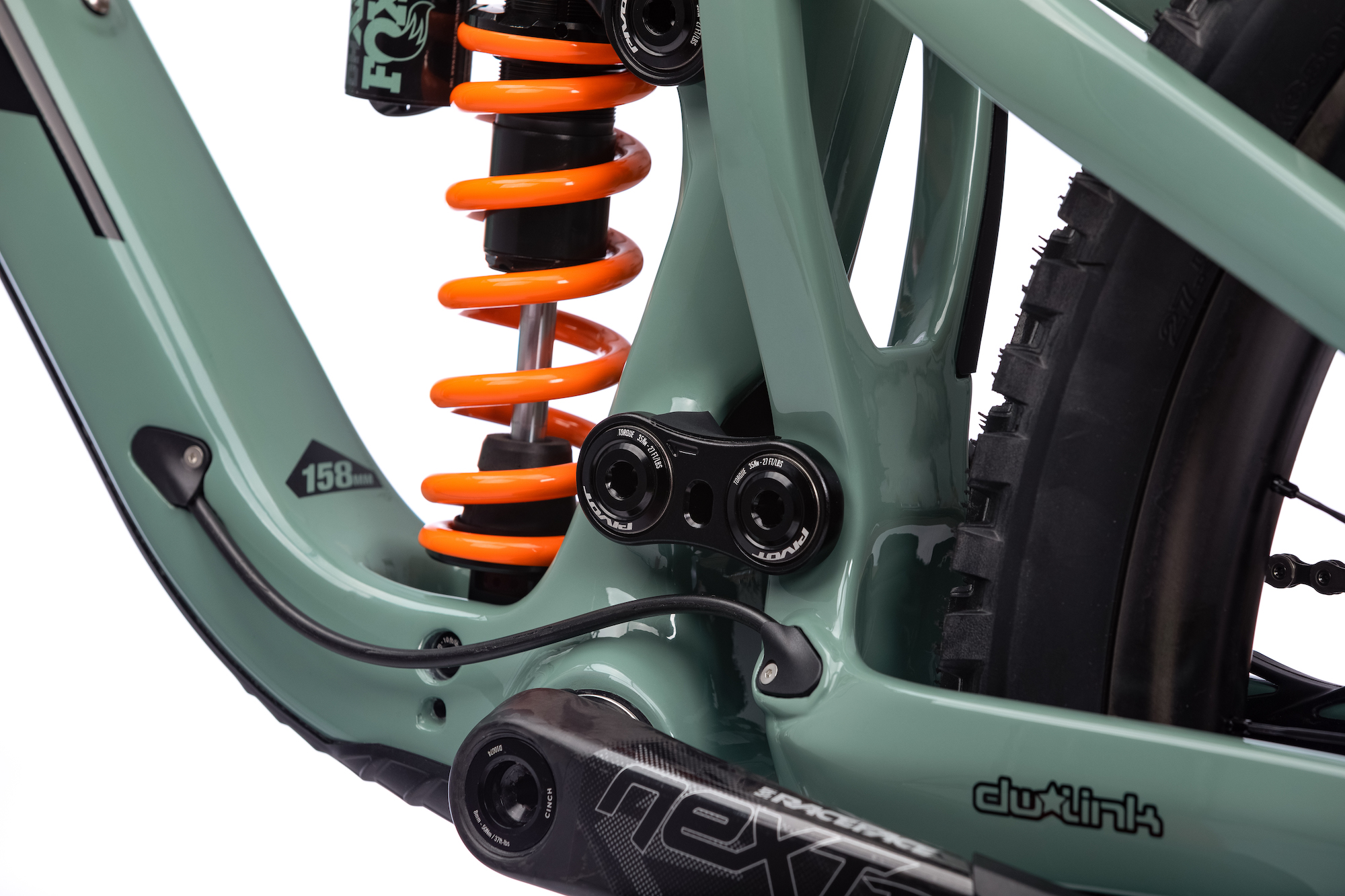

Rear Shock

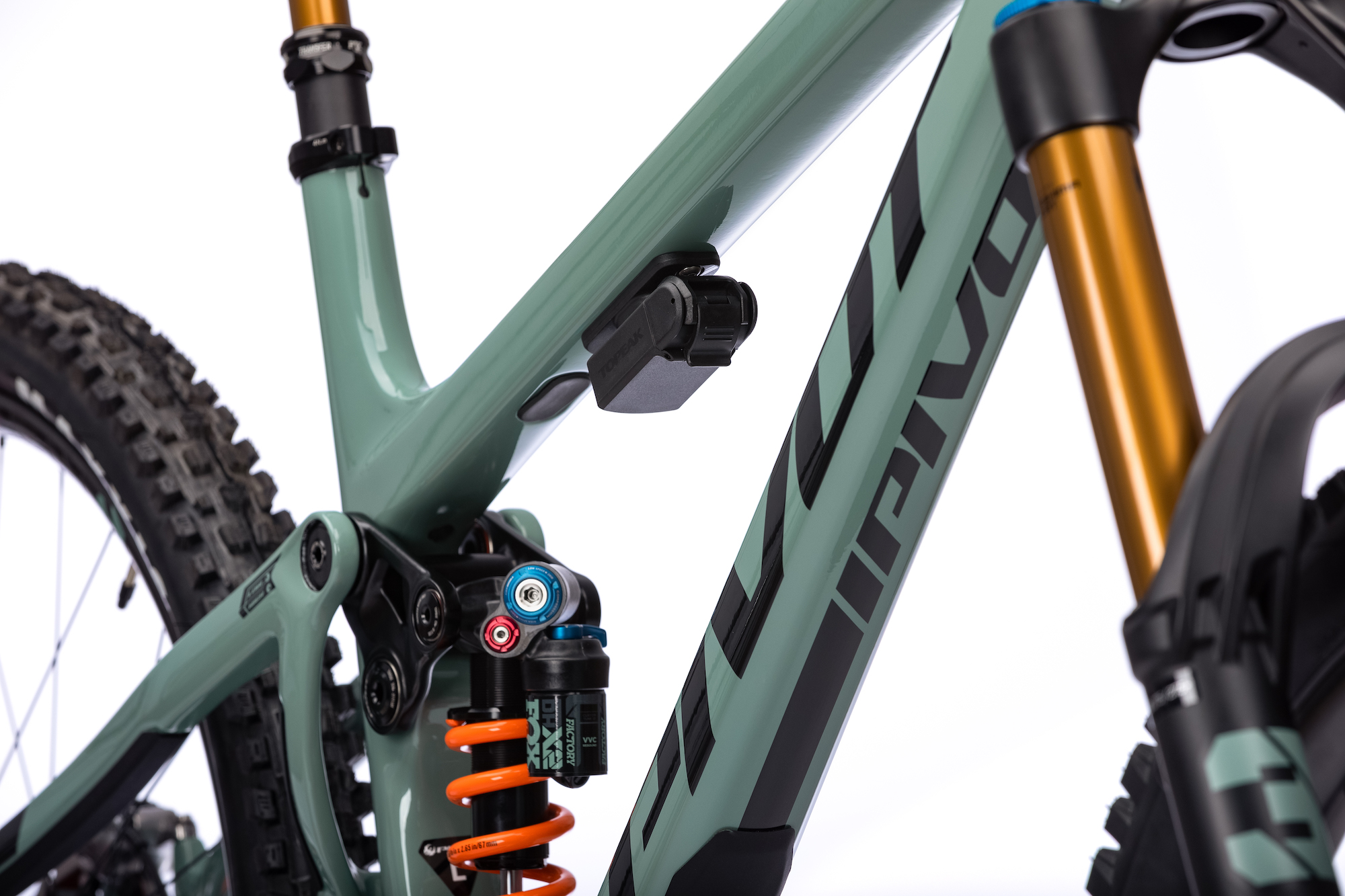

FOX Factory DHX2, trunnion style upper mount, 205mm eye-to-eye length, 65mm stroke
Spring rates: 400 lb (XS), 450 lb (S), 500 lb (M), 550lb (L)
Spring rates: 400 lb (XS), 450 lb (S), 500 lb (M), 550lb (L)
Fork

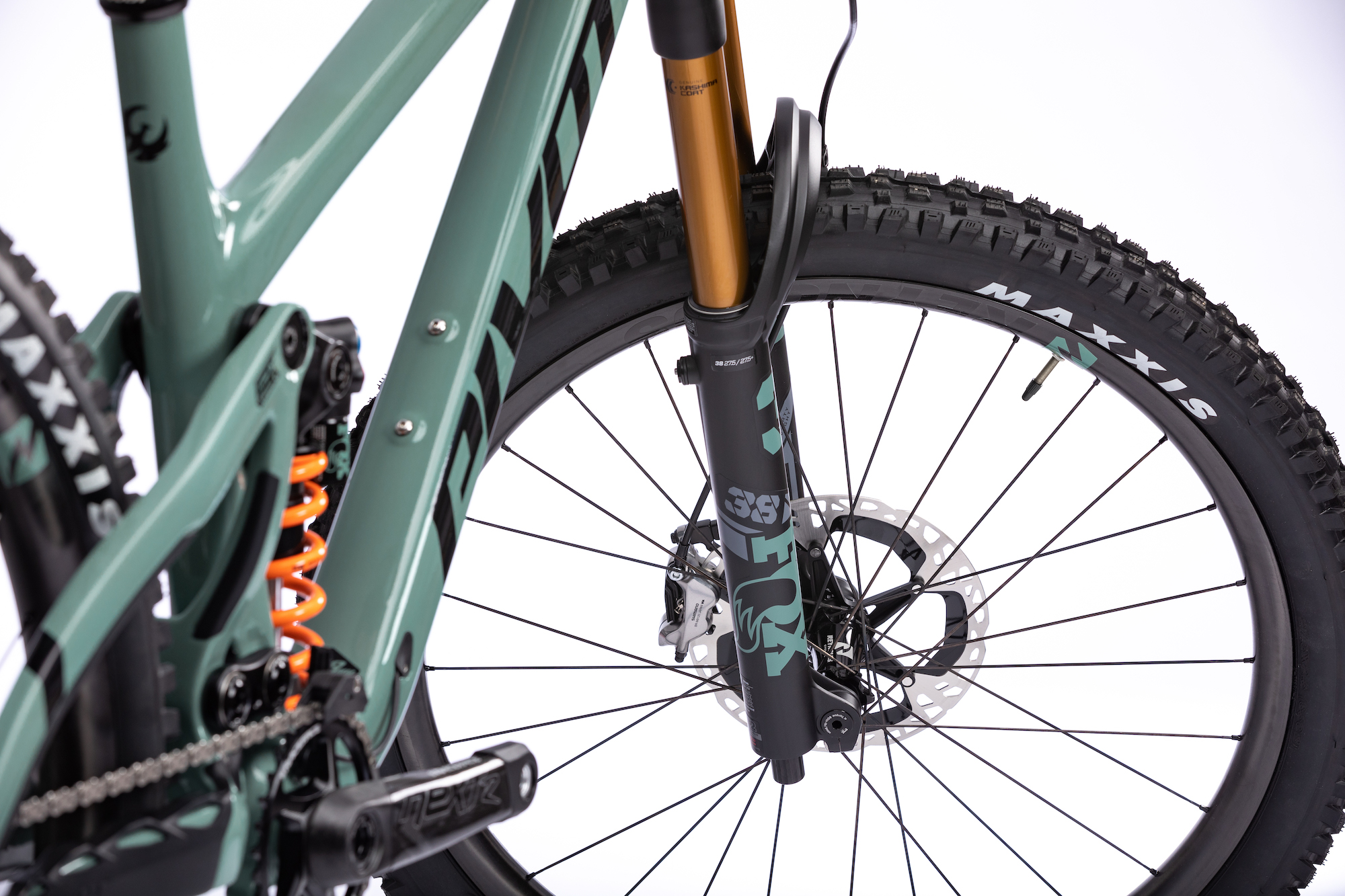

FOX Factory 38, GRIP2, 44mm offset
Fork Travel
160mm

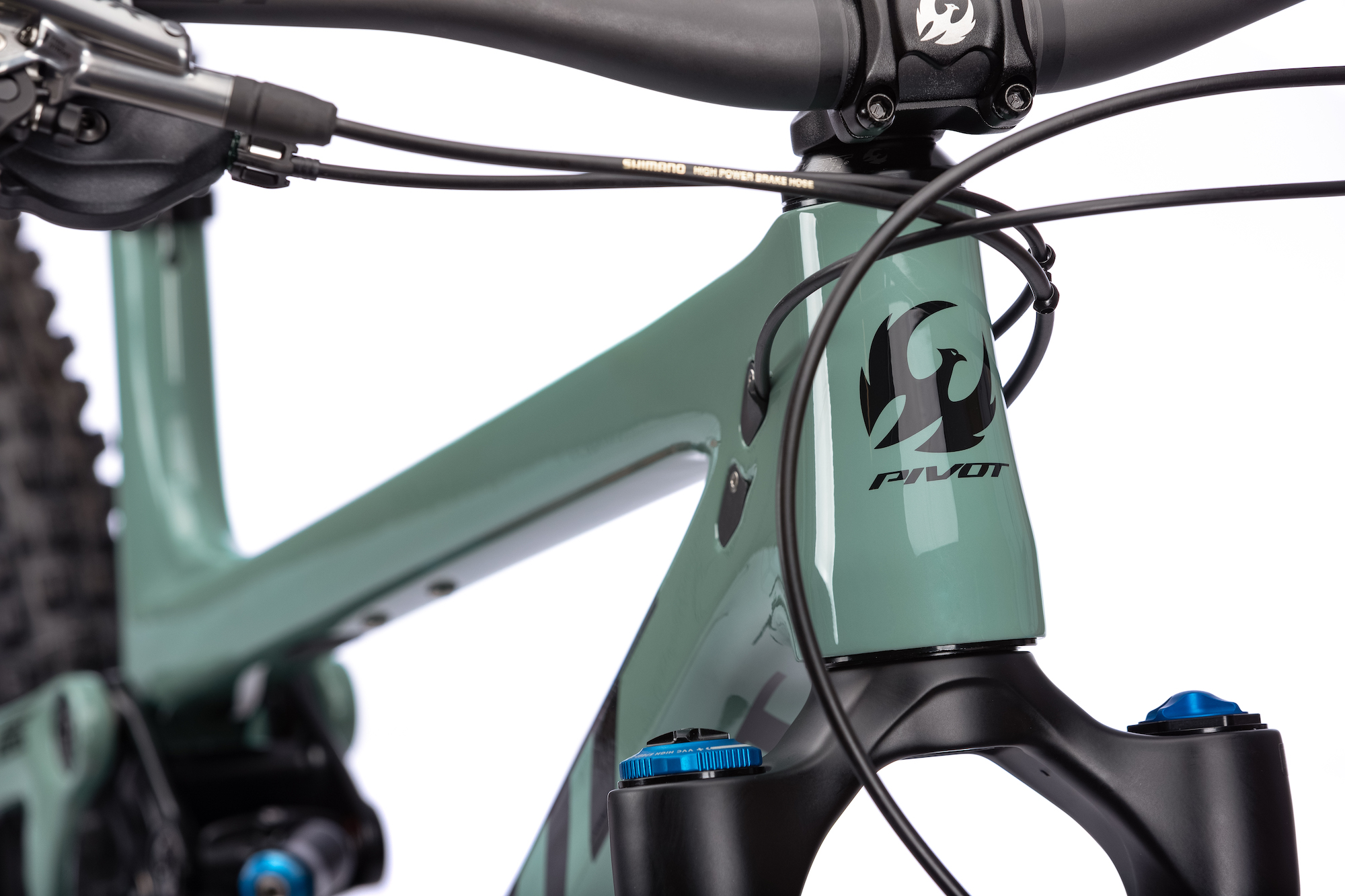

Head Tube Diameter
Tapered
Headset
Pivot semi-sealed cartridge, ZS (zero stack) 44mm top / ZS 56mm bottom
Stem
Phoenix Team Enduro/Trail
Grips
Phoenix Factory Lock-On

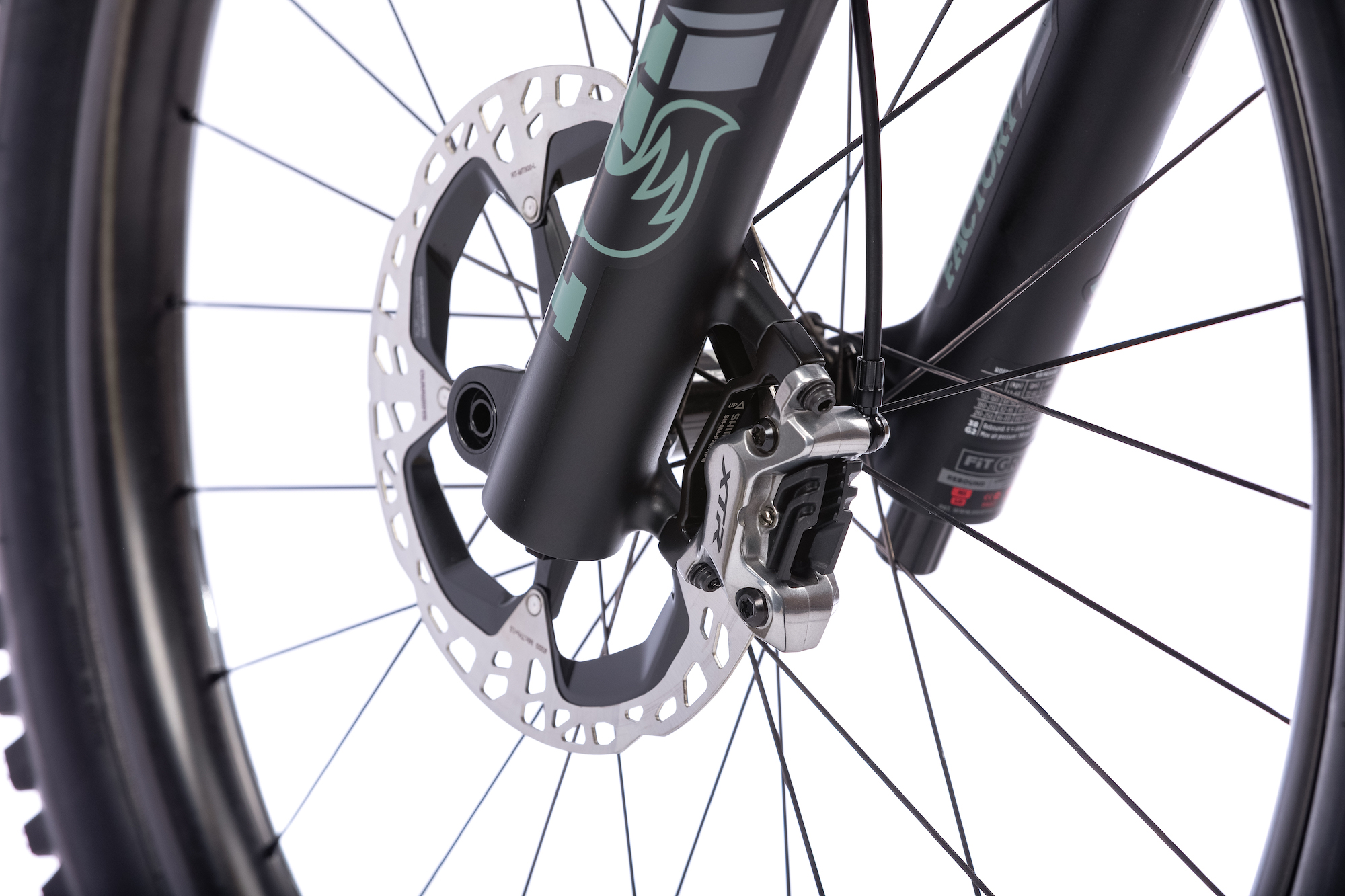

Brakes
Shimano XT M8120, 4-piston with Shimano XT CenterLock rotors, 203mm front / 180mm rear
Brake Levers
Shimano XT M8120
Drivetrain
1x
Shifters
Shimano XTR, 12-speed
Front Derailleur
N/A
Rear Derailleur
Shimano XTR SGS, 12-speed
ISCG Tabs
ISCG 05

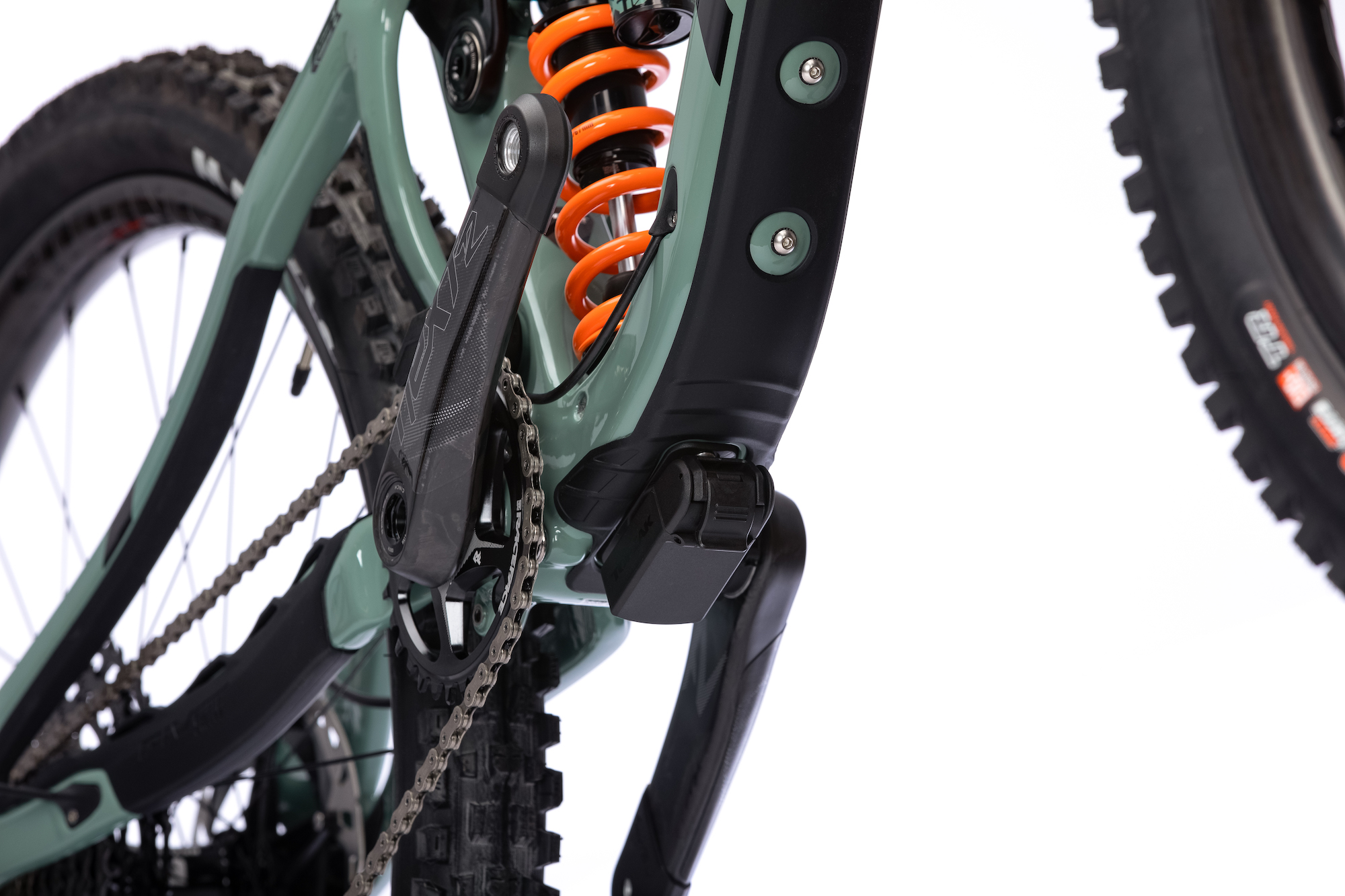

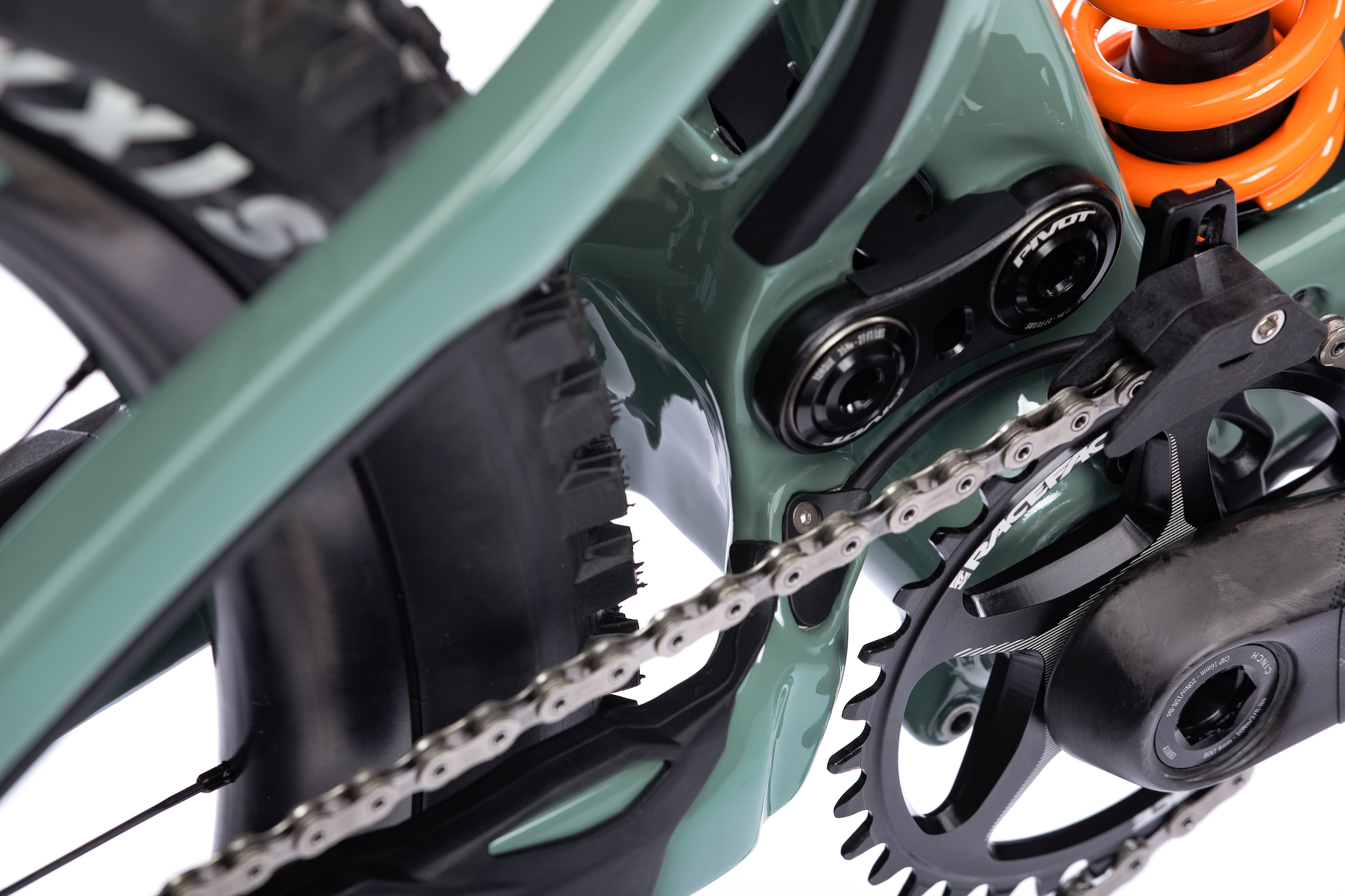

Chainguide
Top guide
Cranks
Race Face Aeffect R
Chainrings
32 tooth
Bottom Bracket
Press-fit BB92
Pedals
N/A
Chain
Shimano CN-M8100, 12-speed

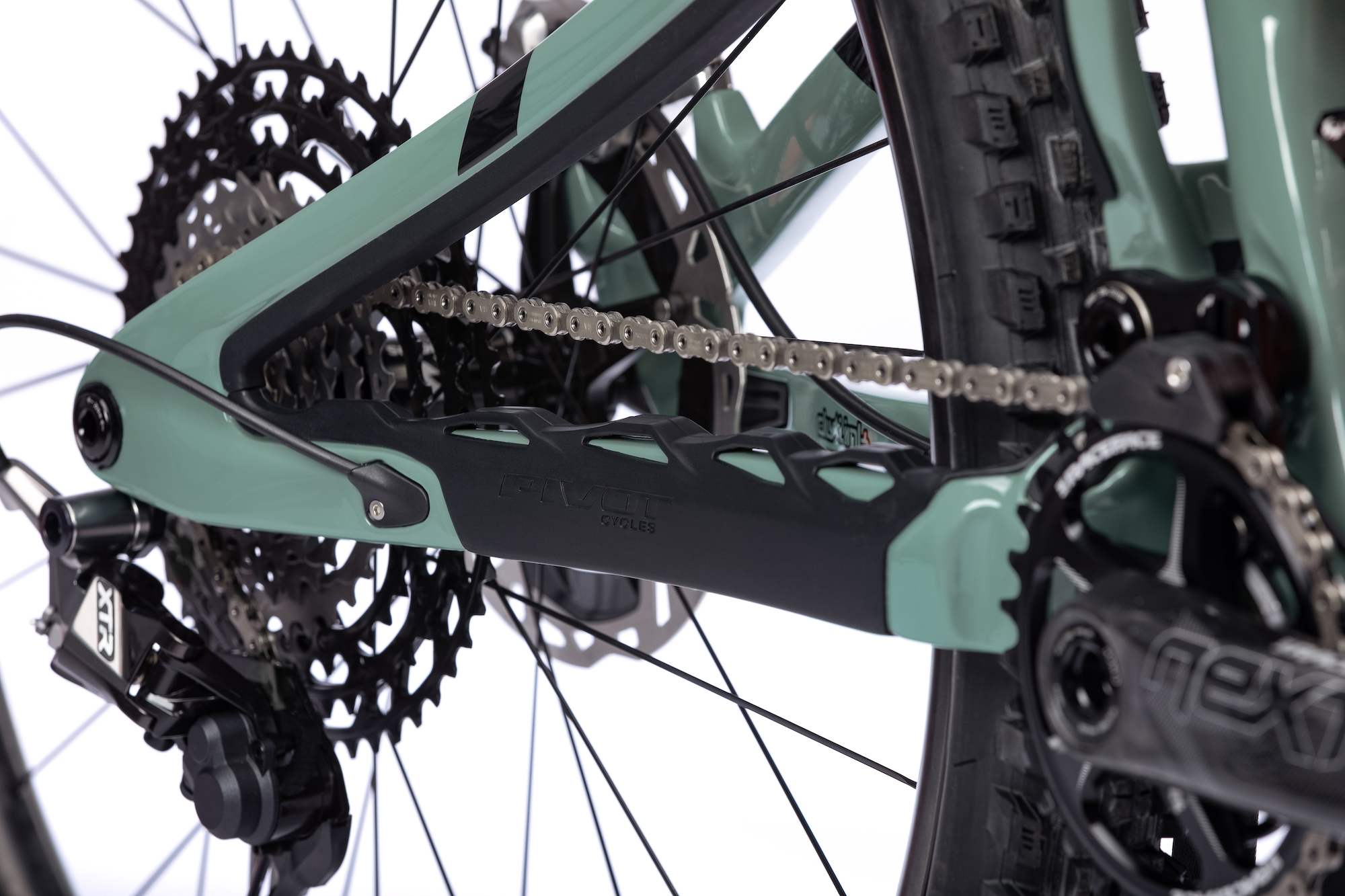

Cassette
Shimano XT M8100, 10-51 tooth
Rims
DT Swiss XM 1700 wheels, 30mm width
Wheel upgrade option: Reynolds Blacklabel Enduro Wide Trail, 34mm
Wheel upgrade option: Reynolds Blacklabel Enduro Wide Trail, 34mm
Hubs
DT Swiss 350 with 36-tooth Star Ratchet
With wheel upgrade option: Industry Nine
With wheel upgrade option: Industry Nine
Spokes
DT Swiss XM 1700 wheels
Tires
Maxxis Assegai 27.5″x2.5″ WT, TR, 3C, EXO+, MaxxTerra
Saddle
Phoenix WTB Volt Race (medium width)

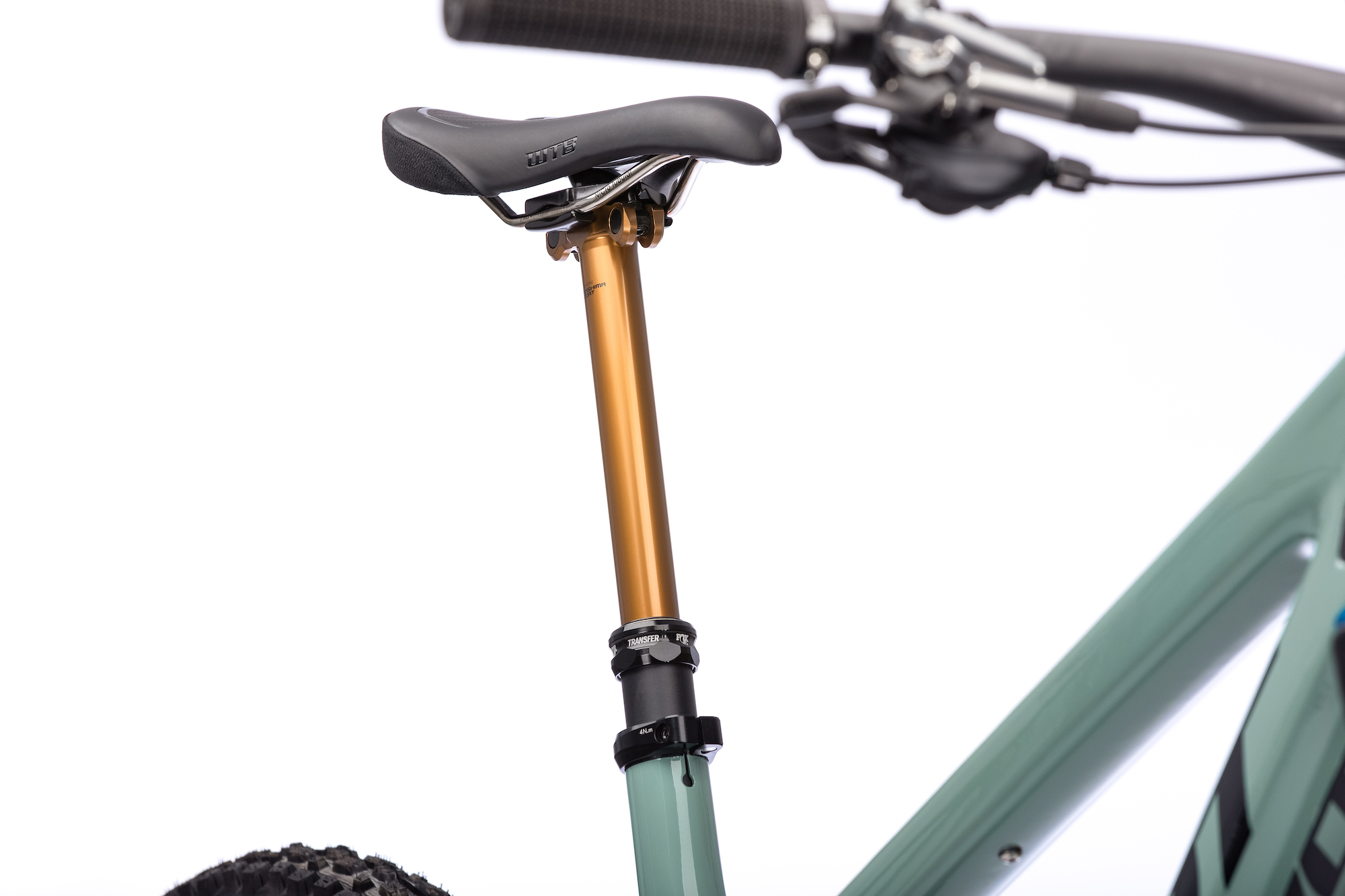

Seatpost
FOX Transfer Factory
125mm (XS), 150mm (S), 175mm (M-L)
125mm (XS), 150mm (S), 175mm (M-L)
Seatpost Diameter
31.6mm
Seatpost Clamp
36.4mm standard single bolt
Rear Dropout / Hub Dimensions
12mm x 157mm
Max. Tire Size
27.5″x2.6″

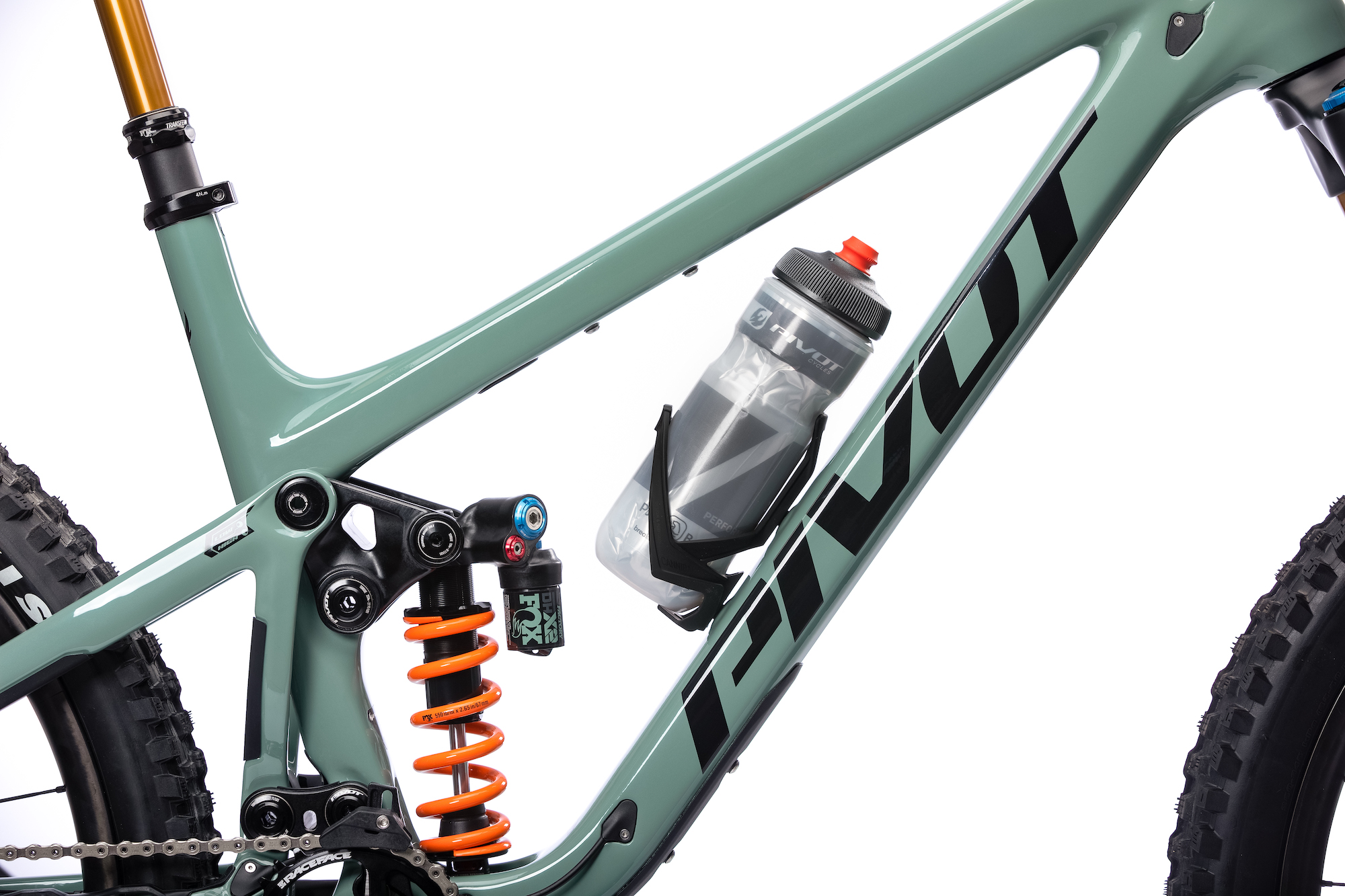

Bottle Cage Mounts
Yes: inside front triangle, fits a large bottle on all sizes with all shock types
Colors

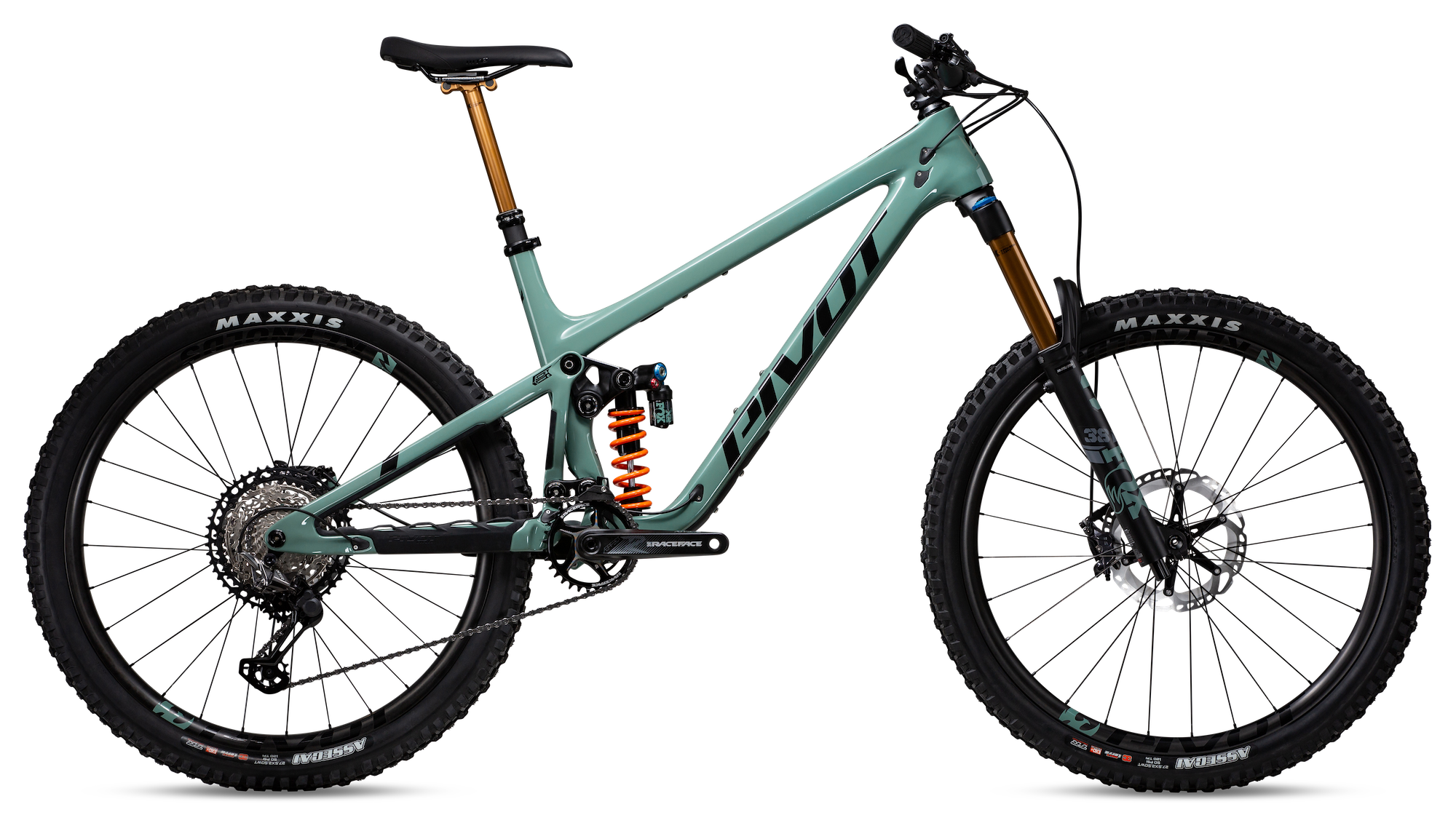

Stealth, Mint Relic
Warranty
10 years for carbon frame
1 year for frame paint, finish, and bearings
5 years for Pivot Cycles-branded Phoenix Components
1 year for frame paint, finish, and bearings
5 years for Pivot Cycles-branded Phoenix Components
