Product

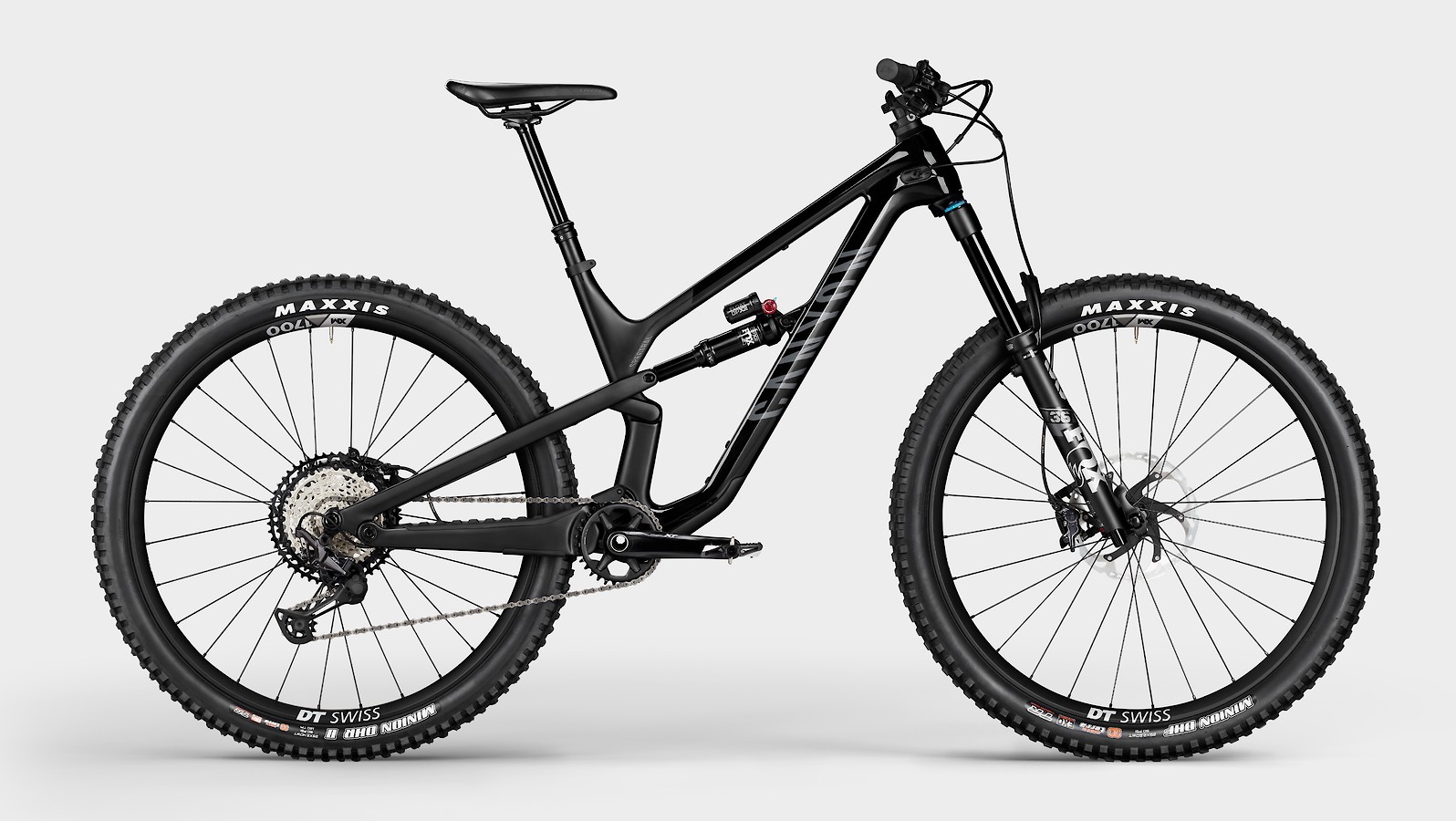

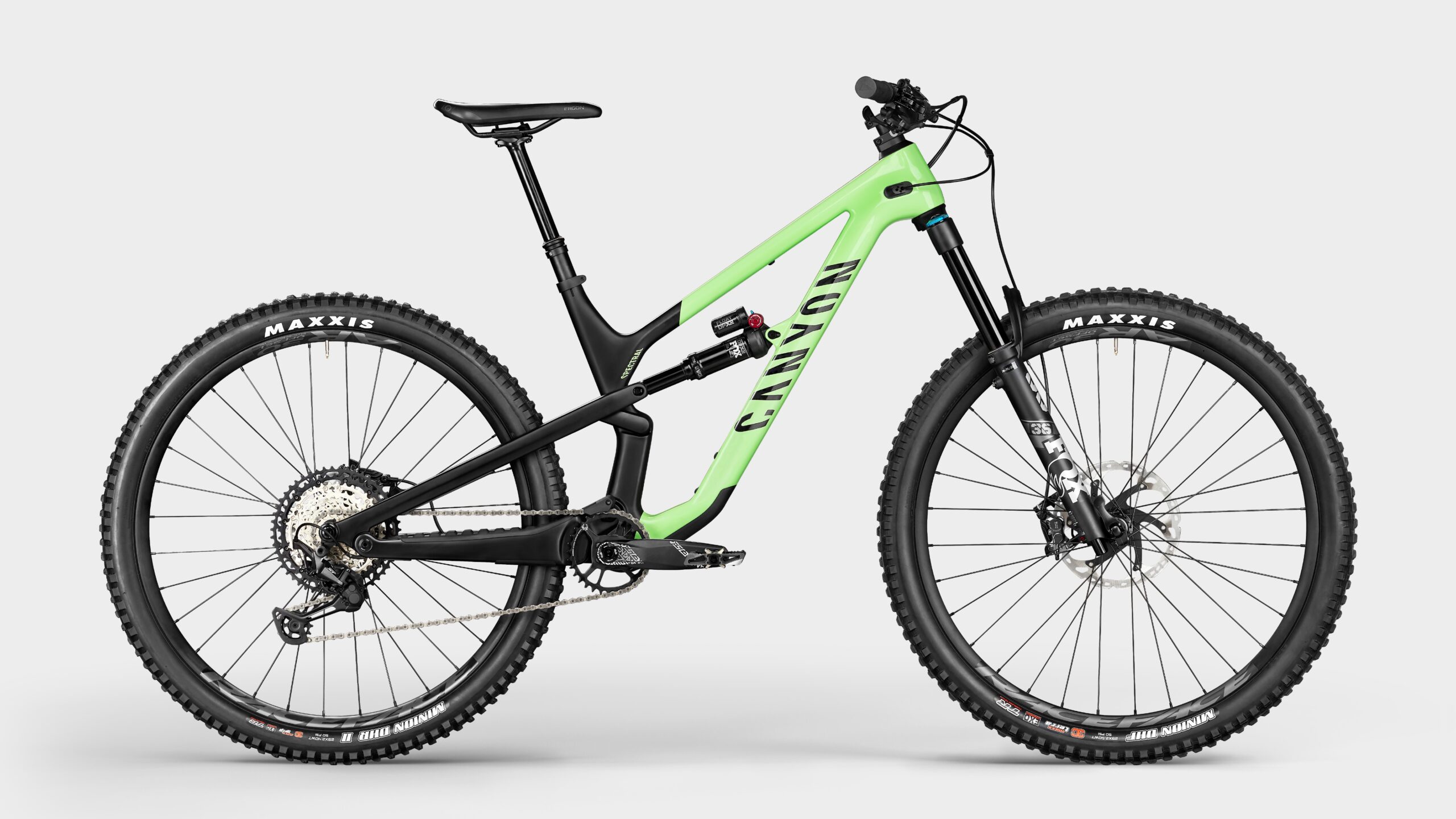

Canyon Spectral 29 CF 8 Bike
Model Year
2021
Riding Type
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
S
M
L
XL
Wheel Size
29″
Frame Material
Carbon Fiber
Frame Material Details
Canyon CF-grade carbon, replaceable threaded inserts, guided internal cable routing
Rear Travel
150mm

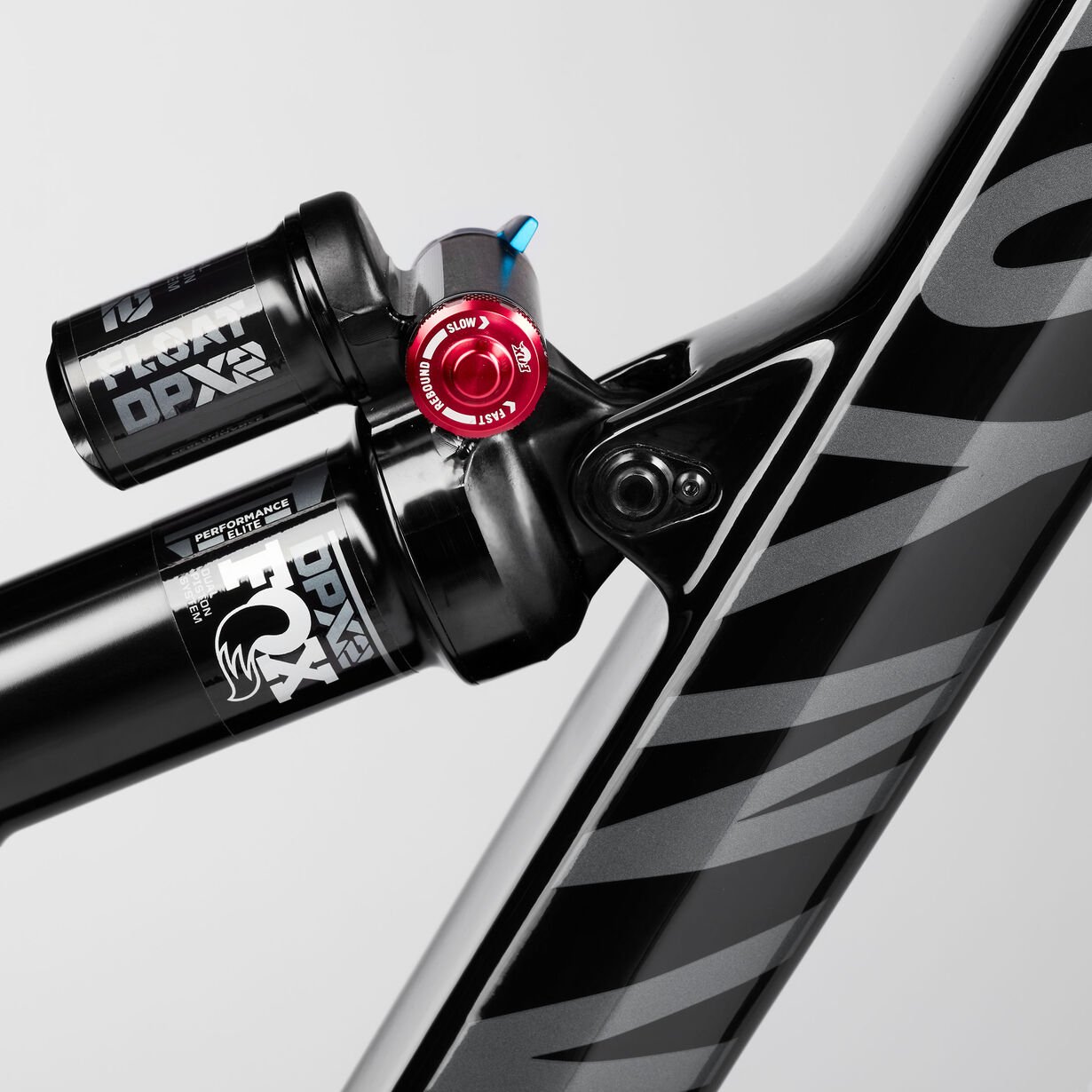

Rear Shock
FOX FLOAT DPX2 Performance Elite, 230x60mm, 3-position adjustment
Fork
FOX FLOAT 36 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset
Fork Travel
160mm
Head Tube Diameter
Straight
Headset
Stem
Canyon G5, 40mm length
Grips
Canyon G5, lock-on
Brakes
Shimano Deore XT M8120, 4-piston, with 203mm front / 180mm rear Shimano RT86 rotors
Brake Levers
Shimano Deore XT M8120
Drivetrain
1x
Shifters
Shimano Deore XT, 12-speed
Front Derailleur
N/A
Rear Derailleur
Shimano XT M8100, 12-speed
ISCG Tabs
ISCG 05 (removable)
Chainguide
Canyon integrated upper guide
Cranks
Shimano XT, 165mm length (size S), 170mm length (size M-XL)
Chainrings
32 tooth
Bottom Bracket
Shimano MT800, HOLLOWTECH II threaded
Pedals
N/A
Chain
Shimano XT M8100
Cassette
Shimano Deore XTR, 10-51 tooth
Rims
DT Swiss XM1700 wheelset, 30mm width
Hubs
DT Swiss XM1700 wheelset, Ratchet-drive
Spokes
DT Swiss XM1700 wheelset
Tires
Front: Maxxis Minion DHF 2.5″
Rear: Maxxis Minion DHR II 2.4″
Rear: Maxxis Minion DHR II 2.4″
Saddle
Ergon SM10 Enduro Comp
Seatpost
Canyon Iridium dropper, S/M 150mm travel – L/XL 170mm travel
Seatpost Diameter
30.9mm
Seatpost Clamp
Standard single bolt
Rear Dropout / Hub Dimensions
12x148mm Boost, Canyon Quixle tool-less through axle
Max. Tire Size
29″x2.5″
Bottle Cage Mounts
Yes
Colors
USA: Stealth Black only
Europe: Stealth Black or X-Ray Green
Europe: Stealth Black or X-Ray Green
Warranty
6-year limited
Weight
31 lb 13.4 oz (14,440 g)
Reviews
There are no reviews yet.
